10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-16
MXU 500
Install spring collar.
Use the special tool to install spring and
spring seat, then install and tighten the nut
to the specified torque.
Torque: 7.5 kgf-m (75 N-m, 54 lbf-ft)
Special tool:
Driven pulley spring compressor
A120E00059

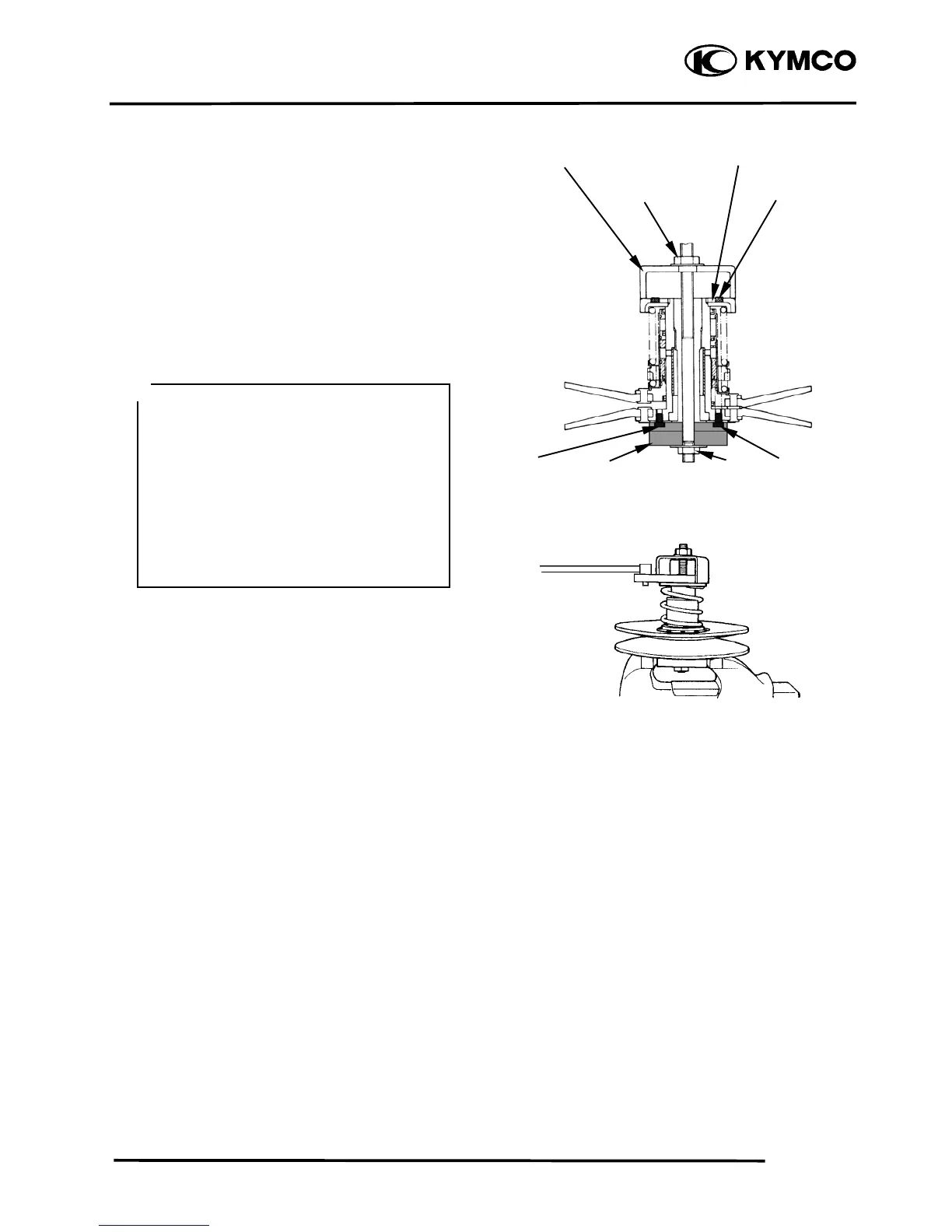

Ɣ Attach the block, nut, nut wrench an
spring compressor to the driven pulley
assembly.
Ɣ Place the block in a vise and secure it.
Ɣ Tighten the spring compressor nut and
compress the spring.
Ɣ Install the nut and tighten it to the
specified torque with the nut wrench.
Ɣ Remove the spring compressor and nut
wrench.
＊
Bolt Block Nut Bolt
Spring Compressor Nu
To Next Page
