10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-17
MXU 500
CLUTCH
REMOVAL/INSTALLATION
REMOVAL
Remove the fan guide (refer to the “DRIVE
PULLEY AND DRIVEN PULLEY
REMOVAL/INSTALLATION” section in
this chapter).

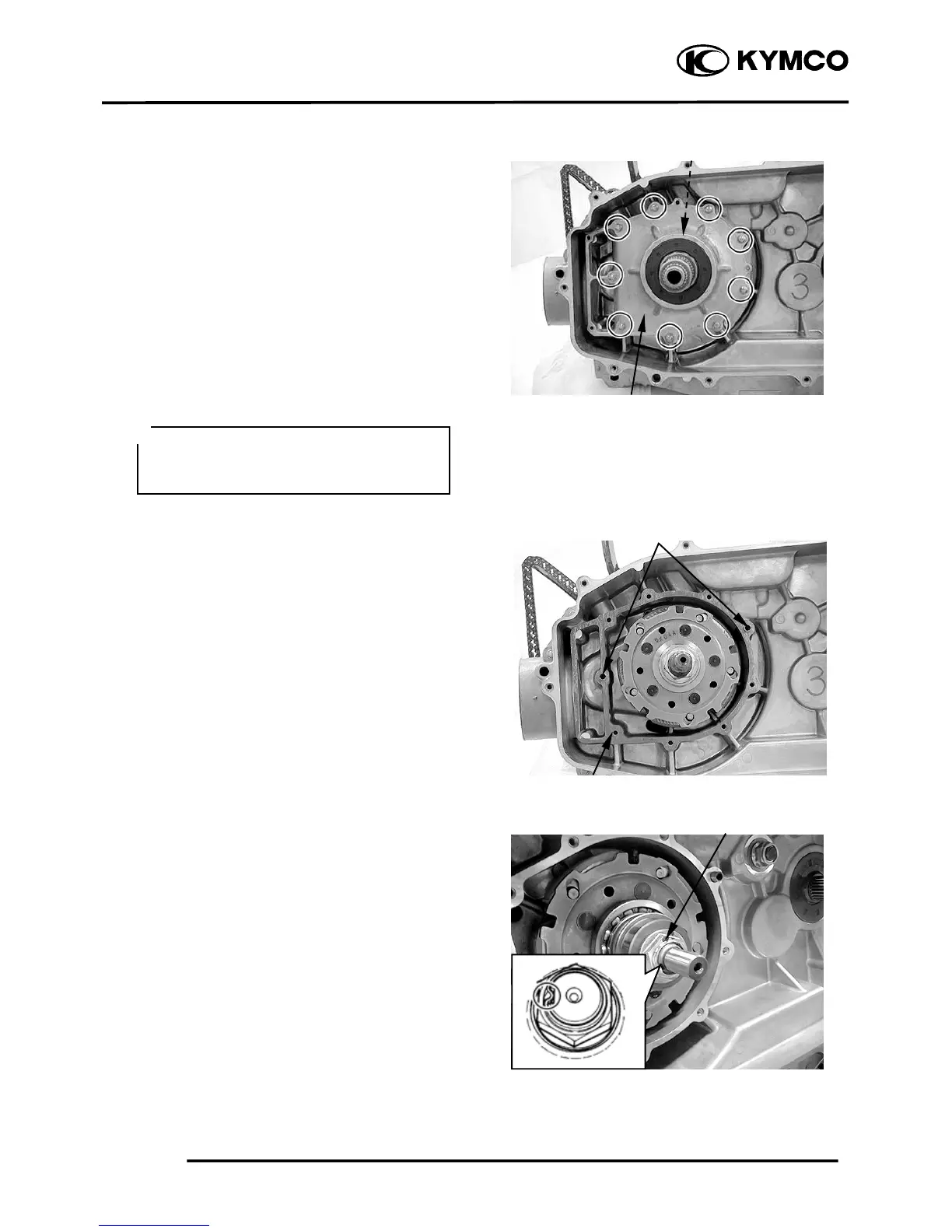

Remove the nine bolts and then remove the
clutch housing assembly and one-way
clutch bearing.
Remove the two dowel pins and gasket.
Using a chisel, unlock the nut.
Working in crisscross pattern, loosen
each bolt 1/4 of a turn. Remove them
after all of them are loosened.
＊
Clutch Housing Assembly
One-way Clutch Bearing
Gasket
Dowel Pins
Nu
To Next Page
