10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-18
MXU 500

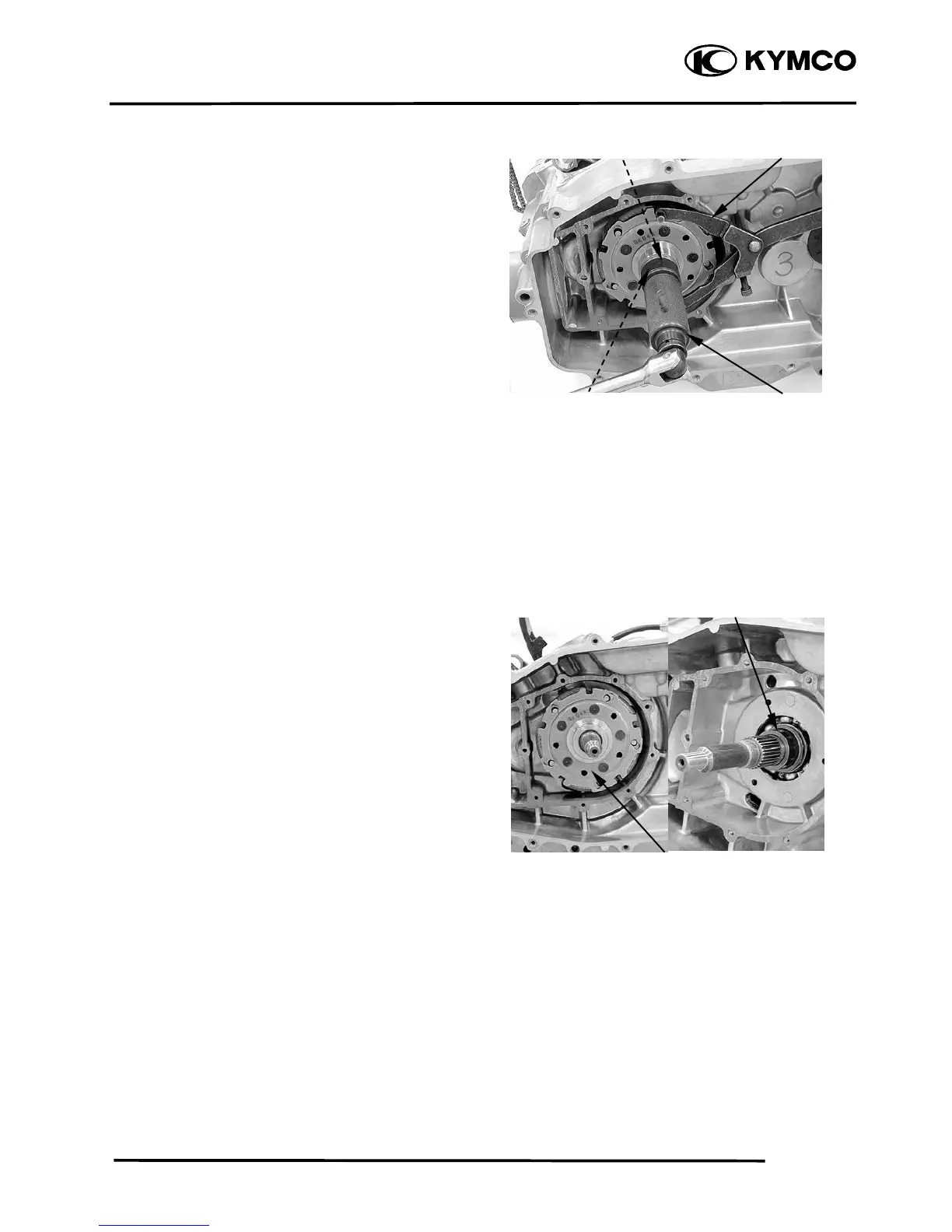

Use the special tool to hold clutch carrier
assembly.
Special tool:
Y-type holder A120E00056
Not USA type:
Use the special tool to remove the nut and
washer.
Special tool:
Lock nut wrench A120E00067
USA type:
Remove the nut and collar.
Remove the clutch carrier assembly and
collar.
Clutch Carrier Assembly
Colla
To Next Page
