10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-20
MXU 500

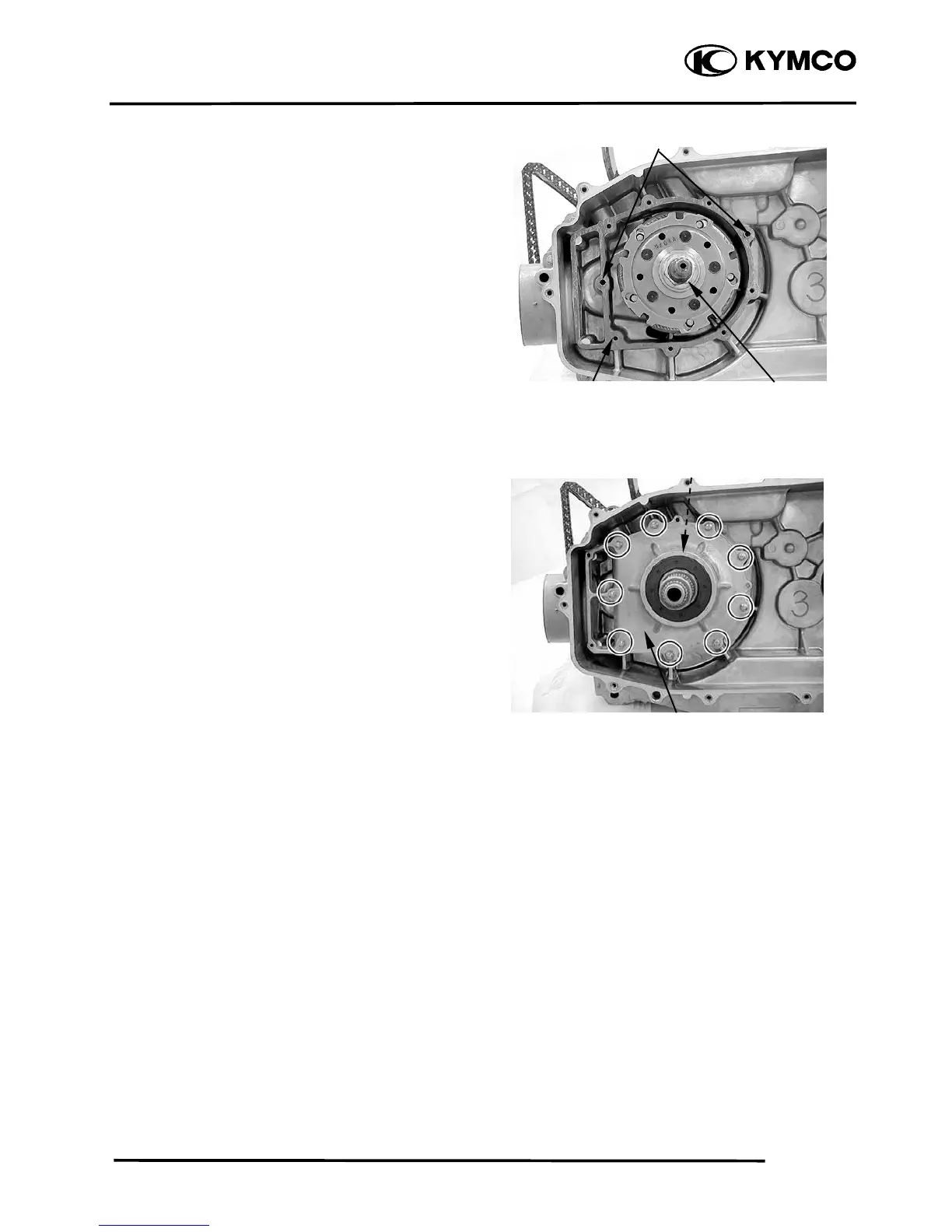

Install the dowel pins and gasket.
Apply molybdenum disulfide grease to the
one-way clutch bearing, then install it.
Install the clutch housing and tighten the
bolts to the specified torque in a crisscross
pattern in 2-3 steps.
Torque: 1 kgf-m (10 N-m, 7.2 lbf-ft)
Gasket Nut/Washer
Dowel Pins
Clutch Housing Assembly
One-way Clutch Bearing
To Next Page
