10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-21
MXU 500
CLUTCH
DISASSEMBLY/INSPECTION/
ASSEMBLY
DISASSEMBLY

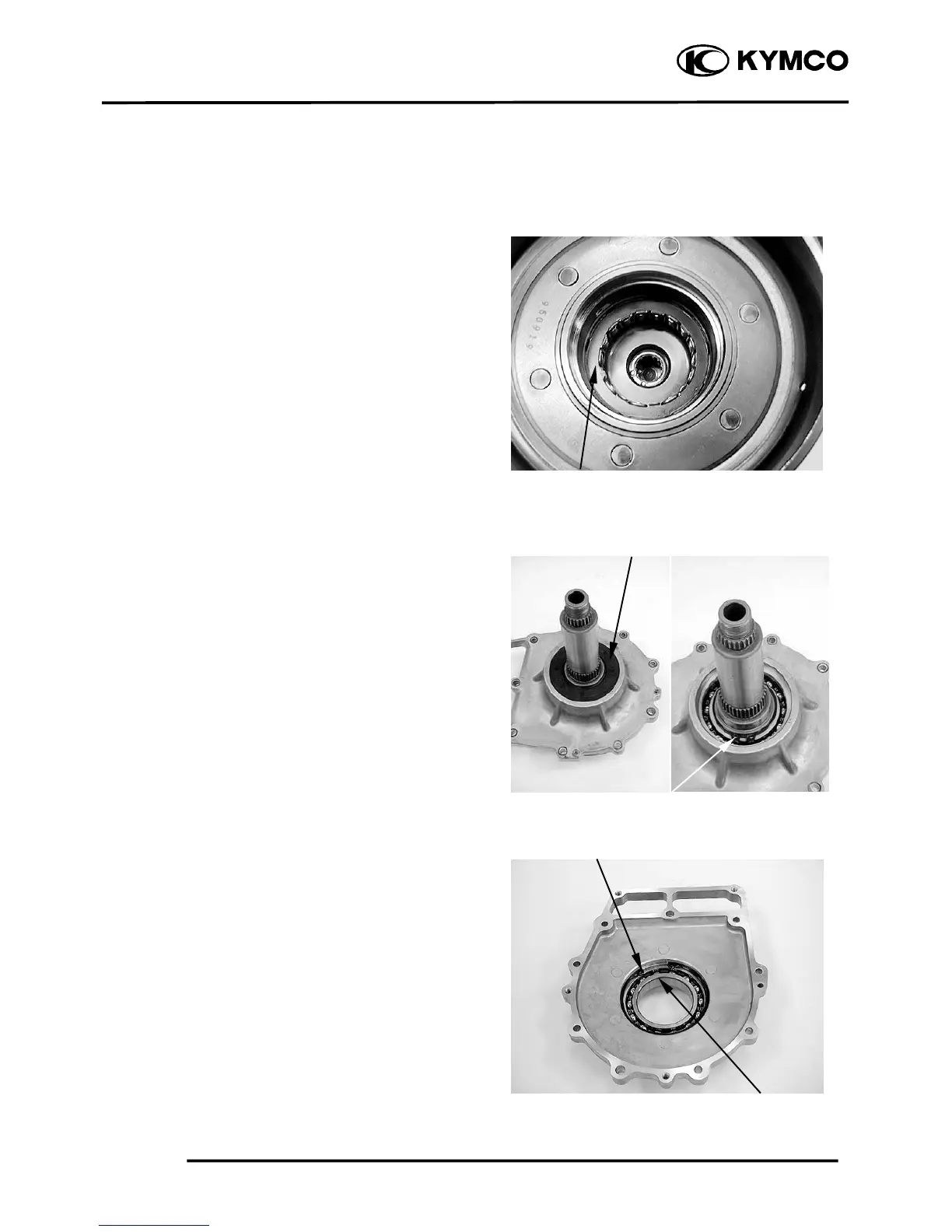

Remove the clutch housing and clutch
carrier assembly (refer to the āCLUTCH
REMOVAL/INSTALLATIONā section in
this chapter).
Remove the one-way clutch bearing from
the clutch housing.
Clutch housing removal (not USA type):
Remove the oil seal.
Remove the snap ring, then remove the
clutch housing.
Remove the snap ring, then remove the
bearing.
Snap Ring
Oil Seal
Bearing
Snap Ring
One-way Clutch Bearing
To Next Page
