10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-25
MXU 500
ASSEMBLY

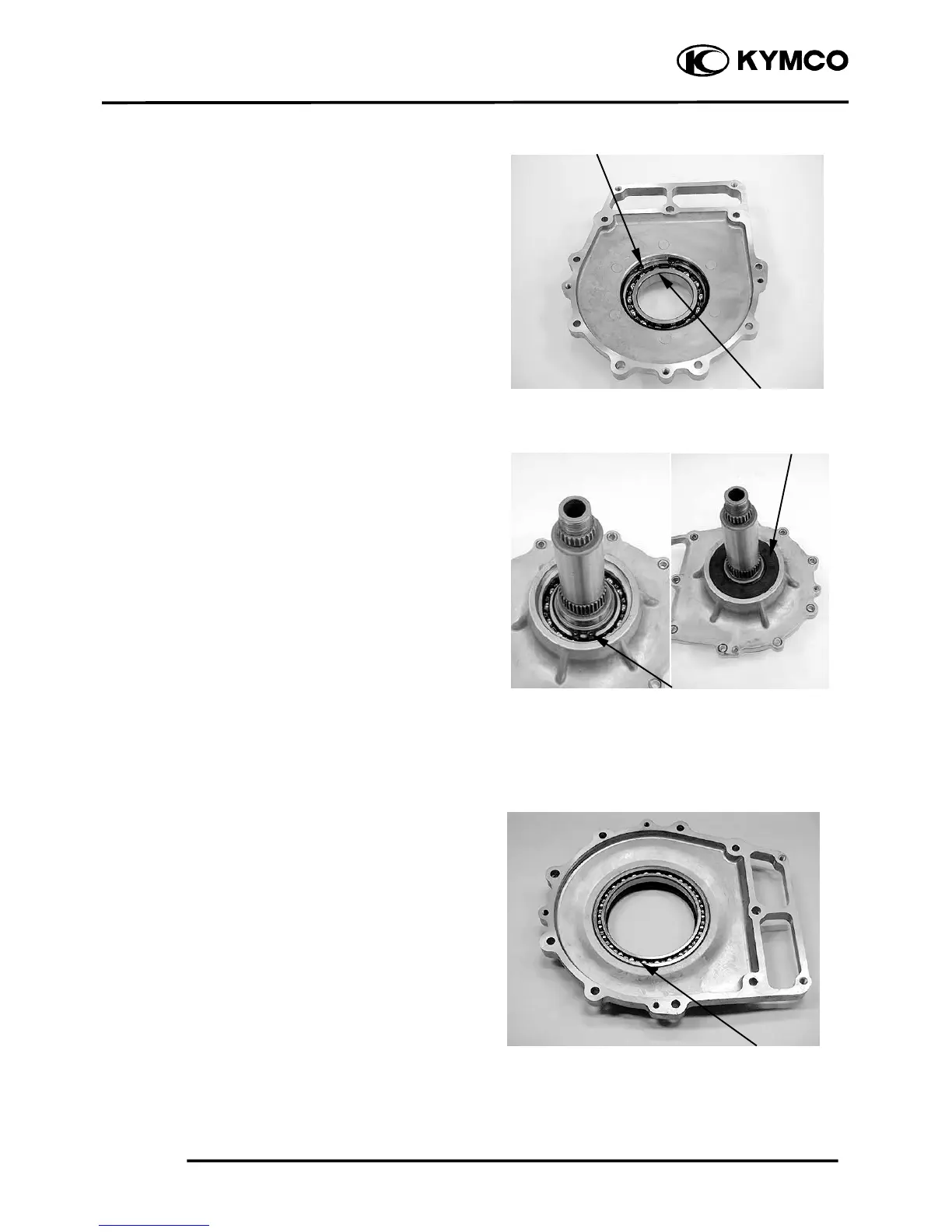

Clutch housing installation (not USA
type):
Apply clean engine oil, then install the new
bearing.
Install the snap ring.
Install the clutch housing.
Install the snap ring.
Apply lightweight lithium-soap base grease
to the new oil seal lip, then install the new
oil seal.
Clutch housing installation (USA type):
Apply clean engine oil, then install the new
bearing.
Bearing
Snap Ring
Snap Ring
Oil Seal
Bearing
To Next Page
