10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-26
MXU 500

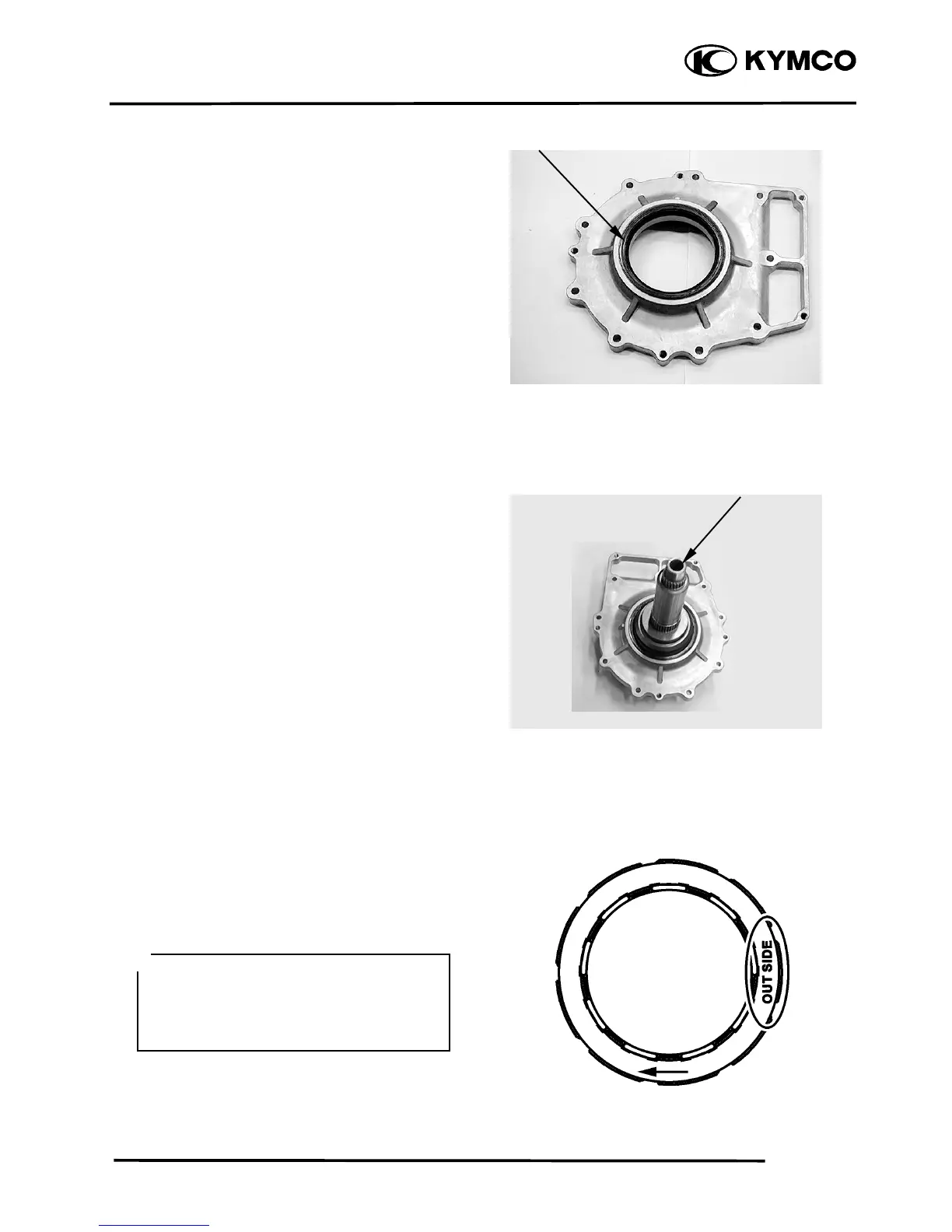

Apply lightweight lithium-soap base grease
to the new oil seal lip, then install the new
oil seal.
Install the clutch housing.
One-way clutch bearing installation:
Install the one-way clutch bearing into the
clutch housing.
Oil Seal
Clutch Housing
The one-way clutch bearing should be
installed in the clutch carrier assembly
with the arrow mark and “OUT SIDE”
mark facing toward the clutch carrier
assembly.
＊
To Next Page
