11.FINAL REDUCTION/
TRANSMISSION SYSTEM
11-4
MXU 500

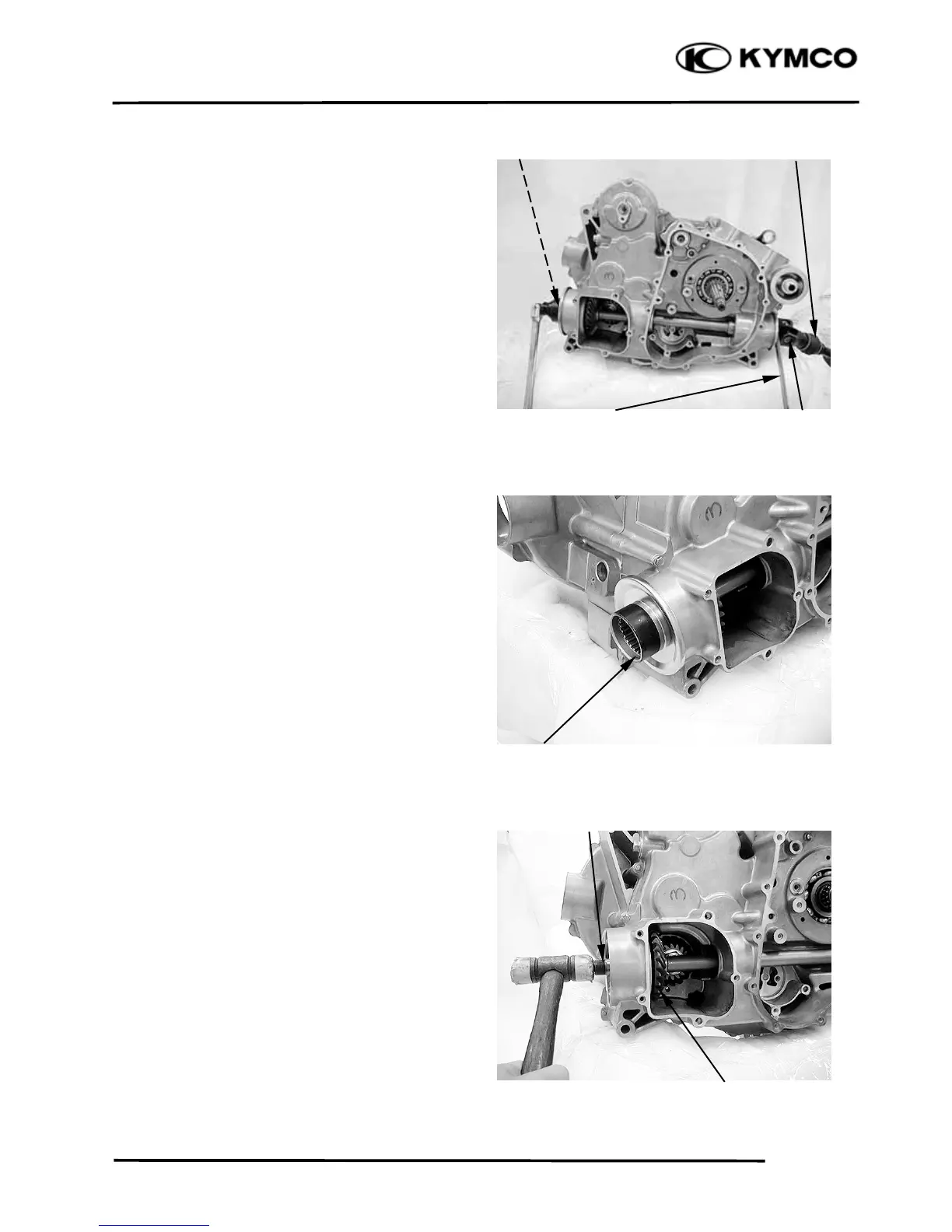

Install the front drive shaft.
Hold universal joint nut by using a suitable
bar, then remove the rear propeller shaft nut.
Remove the rear middle joint.
Tap the output shaft by using a rubber
hammer, then remove the output shaft,
secondary driven bevel gear and shim.
Bar Universal Join
t
Nut Front Drive Shaf
t
Rear Middle Join
t
Secondary Driven Bevel Gear/Shi
m
Output Shaf
t
