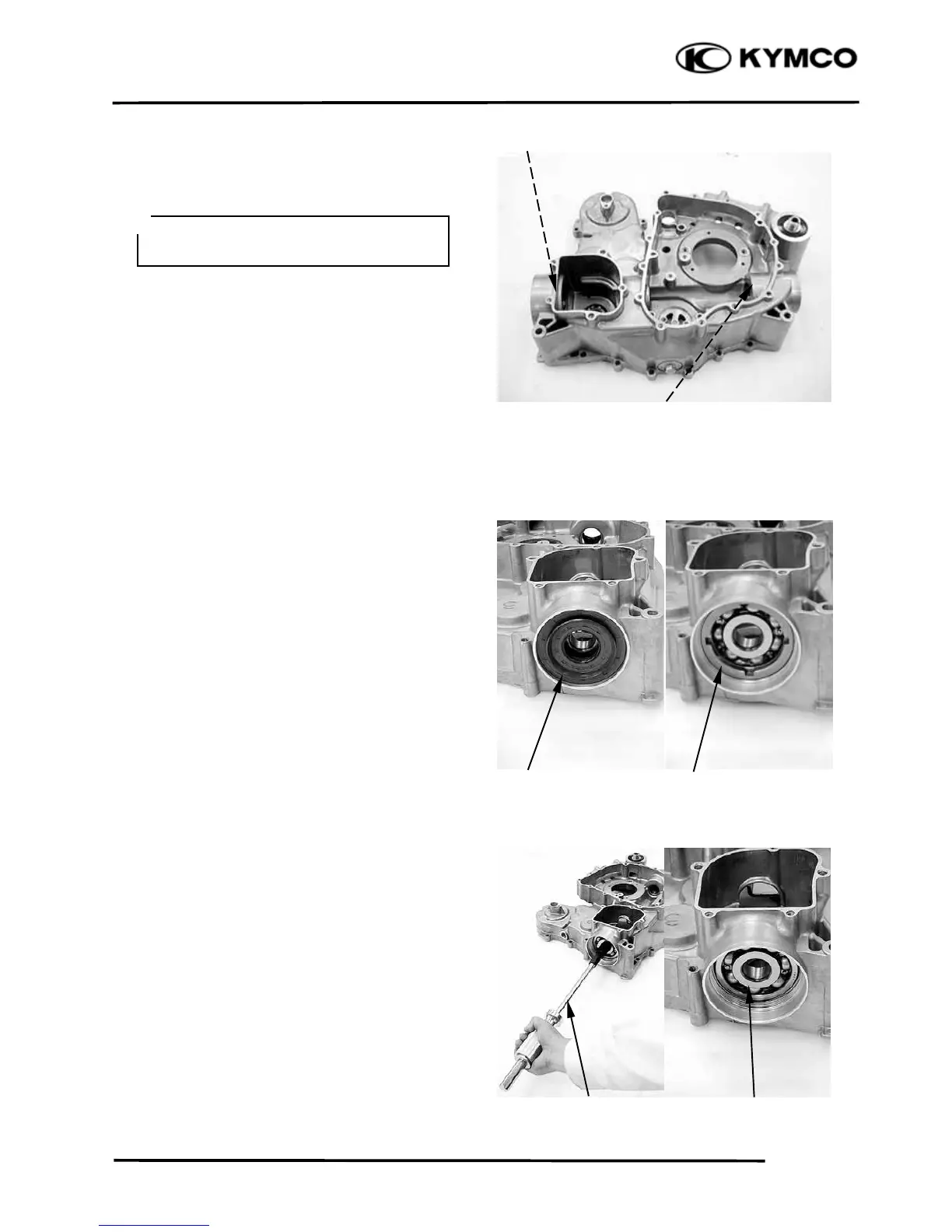

OUTPUT SHAFT FRONT/REAR
BEARING REPLACEMENT
REAR SIDE BEARING
Remove the oil seal.
Remove the nut by using the special tool.
Special tool:
Nut wrench A120E00066
Remove the bearing by using the special tool.
Special tool:
Bearing Puller A120E00037
Install the new bearing.
Oil Seal Nu
t
Front Side Bearing
Rear Side Bearing
Bearing Pulle
r
Bearing
The output shaft bearings can be replace
d
when the crankcase is assembly.
＊
