Install and tighten the nut to the specified
torque by using the special tool.
Torque: 11 kgf-m (110 N-m, 79.2 lb-ft)
Special tool:
Nut wrench A120E00066

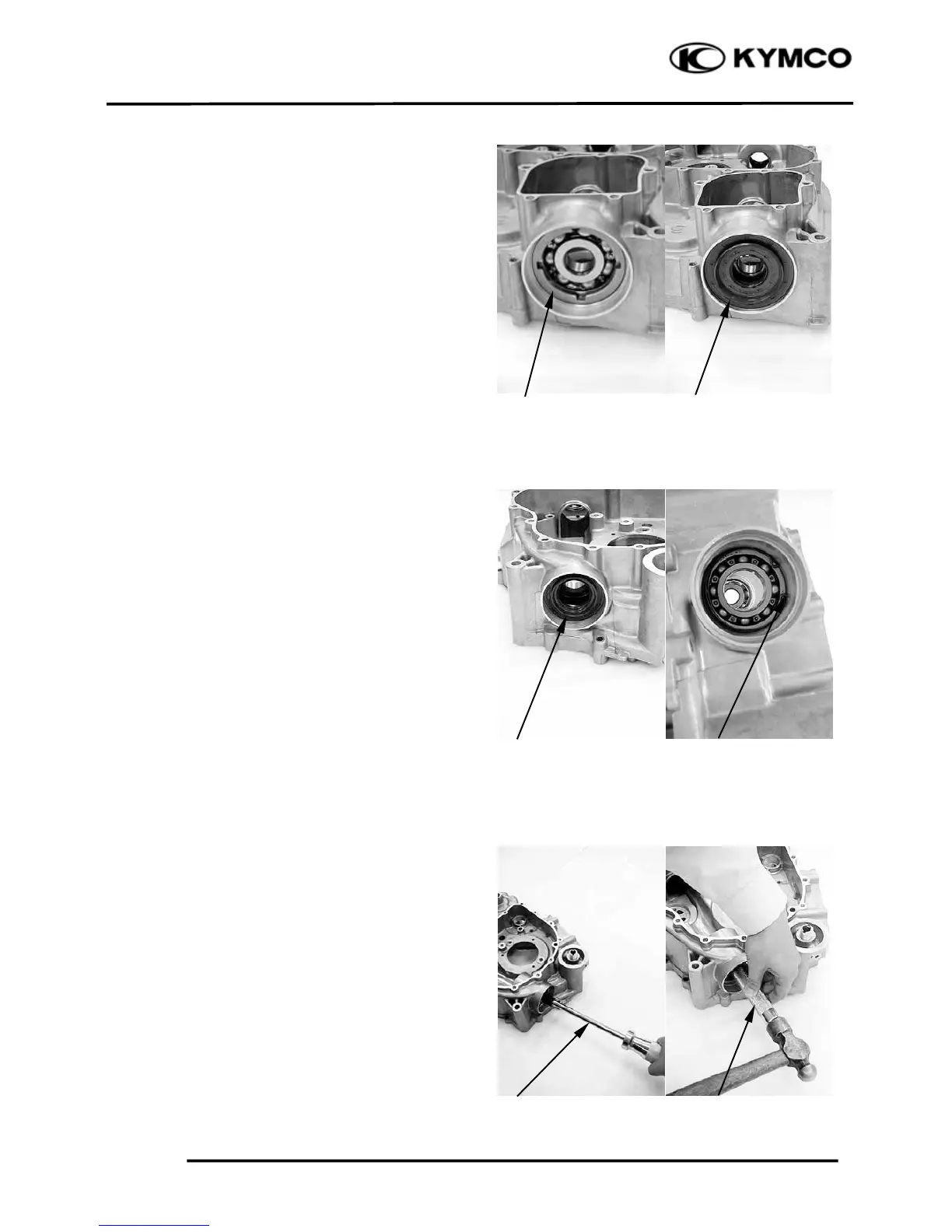

Apply clean engine oil to the new oil seal lip
then install the oil seal.
FRONT SIDE BEARING
Remove the oil seal.
Remove the snap ring.
Remove the bearing by using the special tool.
Special tool:
Bearing Puller A120E00037
Install the new bearing by using the special
tool.
Special tool:
Bearing driver A120E00014
Oil Seal Snap Ring
Oil Seal Nu
t
Bearing Pulle
r
Bearing Drive
r
