13. DRIVE TRAIN
13-6
MXU 500

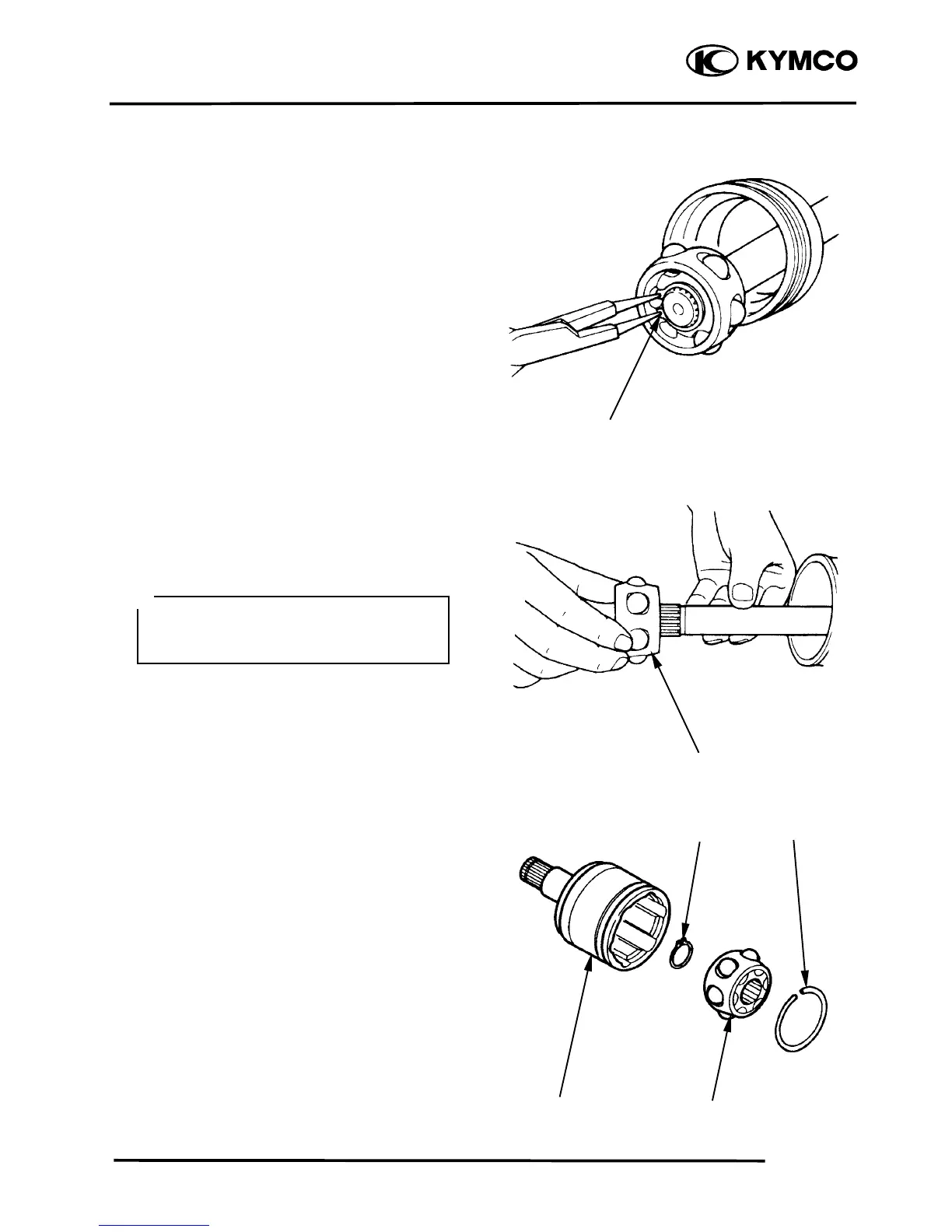

Wipe off any grease and remove the snap ring
from the groove on the front drive shaft.
Remove the cage and boot from the front
drive shaft.
INSPECTION
Inspect the circlip and snap ring for wear or
damage.
If any damages are found, replace them with
new ones.
Inspect the cage and inner surface of case
side joint for pitting, wear or damage.
If any damages are found, replace them with
new ones.
Snap Ring
Case Side Joint Cage
Cage
Do not disassemble the wheel side joint.
If any damages are found, replace the
wheel side joint with a new one.
＊
Snap Ring Circlip
