13. DRIVE TRAIN
13-16
MXU 500

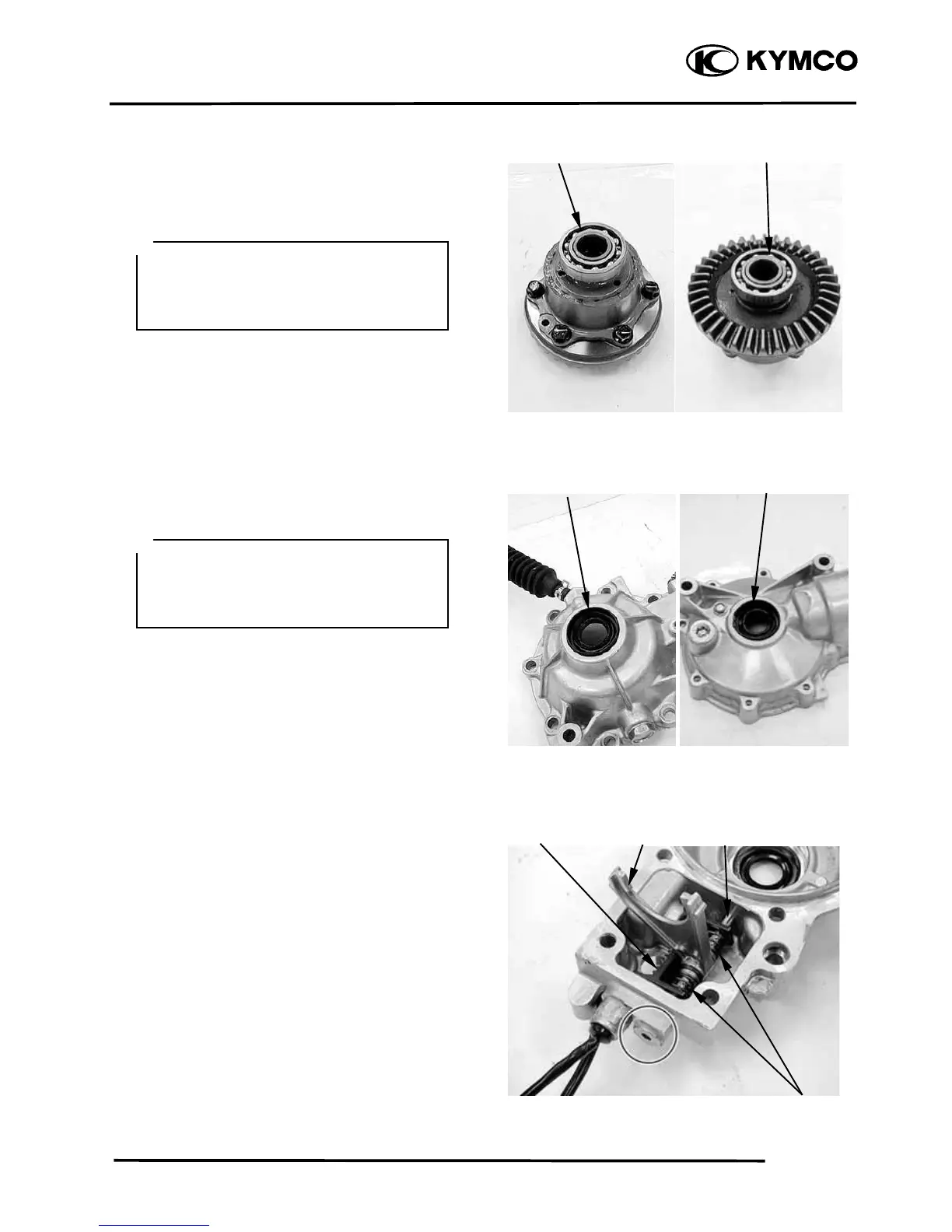

Remove the bearings from the front drive
assembly by using a commercially available
bearing puller.
Remove the oil seals out of the gear case.
Remove the 2WD/4WD shifting fork shaft
plug.
Remove the 2WD/4WD shifting fork,
spring and shifting rack by removing shaft.
Ɣ If there is no abnormal condition, the
bearing removal is not necessary
Ɣ The removed bearing must be replaced
with a new one.
＊
Bearing Bearing
Oil Seal Oil Seal
Ɣ If there is no abnormal condition, the
oil seal removal is not necessary
Ɣ The removed oil seal must be replaced
with a new one.
＊
Springs
Rack Fork Shaf
To Next Page
