13. DRIVE TRAIN
13-17
MXU 500

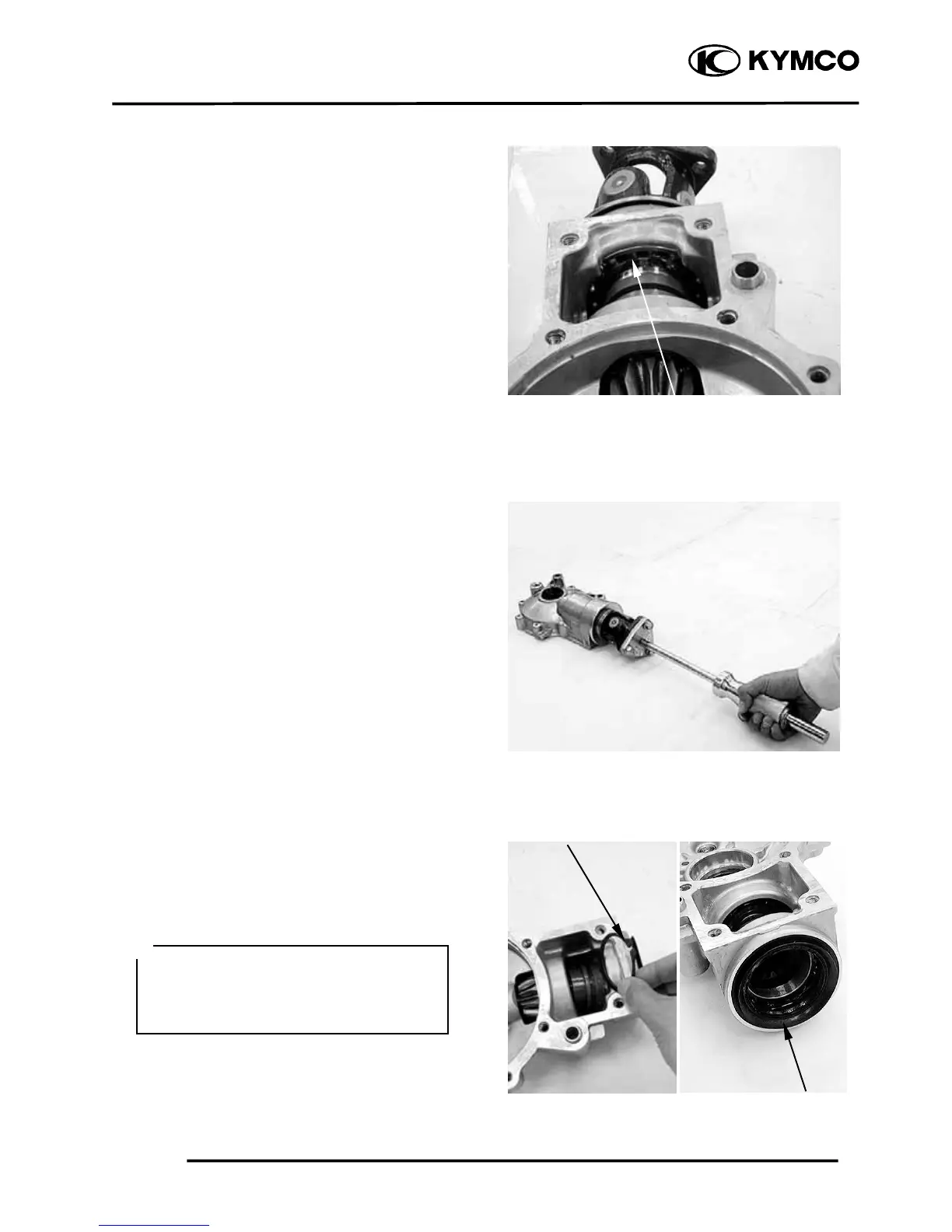

Remove the snap ring out of its groove and
slide it towards the shifting sleeve.
Remove the universal joint yoke assembly
by using the special tool.
Special tool:
Joint yoke remover A120F00016
Remove the snap ring
Remove the oil seal out of the right gear
case.
Snap Ring
Ɣ If there is no abnormal condition, the
oil seal removal is not necessary
Ɣ The removed oil seal must be replaced
with a new one.
＊
Oil Seal
Snap Ring
