INSPECTION

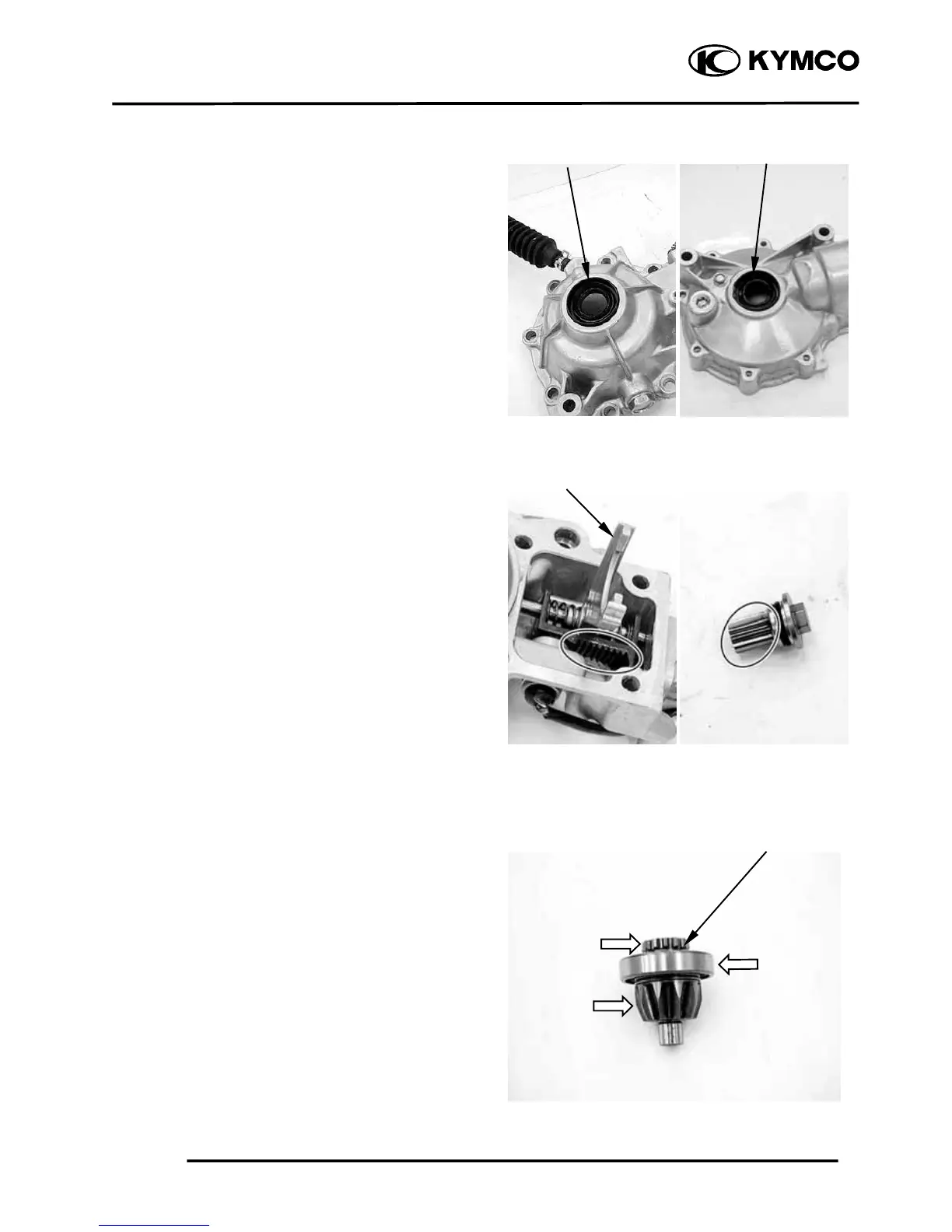

Inspect the gear case and oil seals for wear
or damage.
If any wear or damage is found, replace the
oil seal with a new one.
Inspect the shifting fork and its rack-and-
pinion for wear and damage.
If any defects are found, replace the shifting
fork and its rack-and-pinion with the new
ones.
If the shifting fork is damaged, inspect the
groove of the shifting sleeve.
Check the outer race play and smooth
rotation of the bearing by hand while it is on
the pinion gear shaft.
Inspect the pinion gear for wear or damage.
If the pinion gear is damaged, inspect the
ring gear.
If any defects are found, replace the bearing
and gear with the new ones
Oil Seal Oil Seal
Pinion Gea
