13. DRIVE TRAIN
13-26
MXU 500

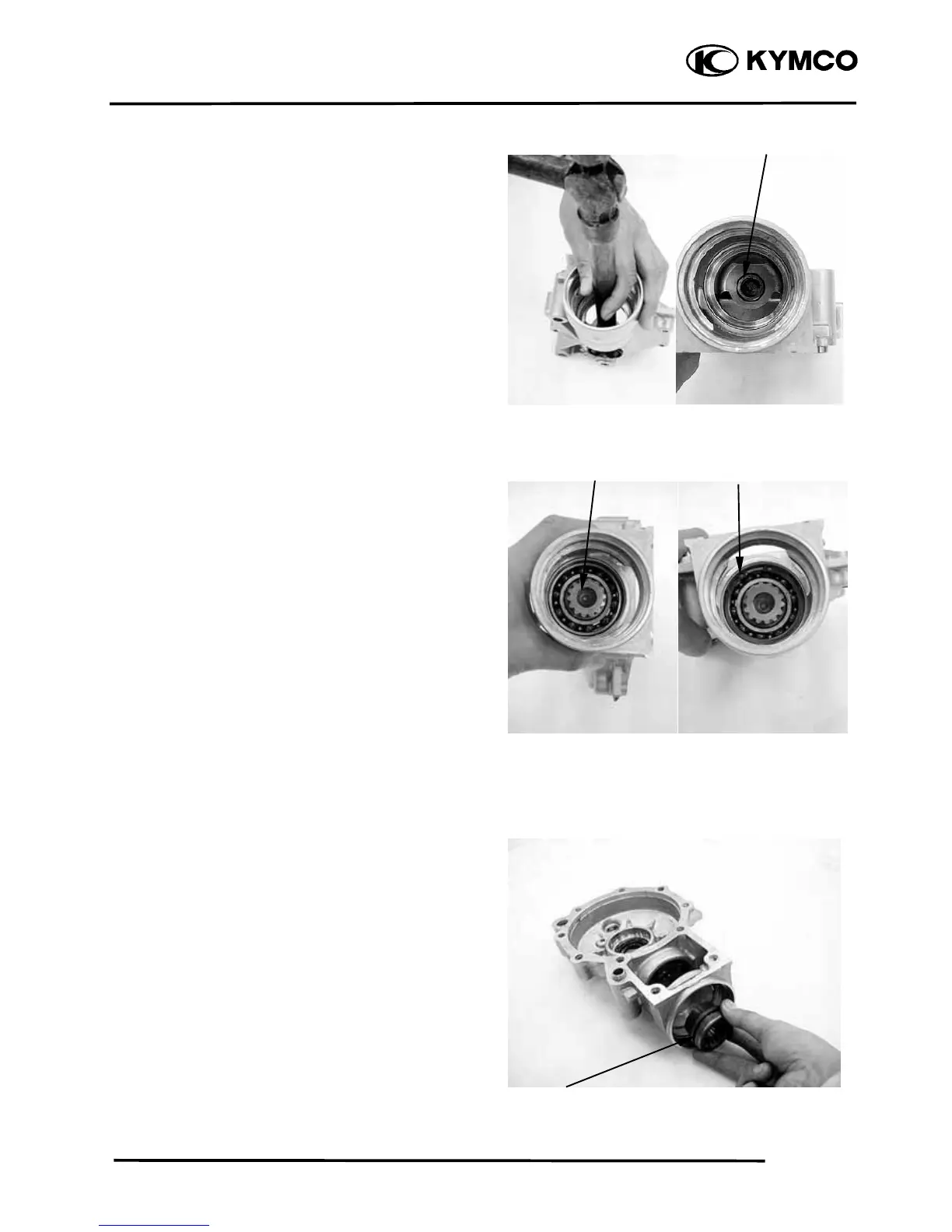

Install the new bevel pinion gear pilot
bearing into the right gear case by using a
proper shaft.
Install the pinion gear assembly and fix the
bearing race with the snap ring.
Install the shifting sleeve to the pinion gear
shaft.
Bearing
Shifting Sleeve
Pinion Gear
/
Bearing Snap Ring
