13. DRIVE TRAIN
13-29
MXU 500

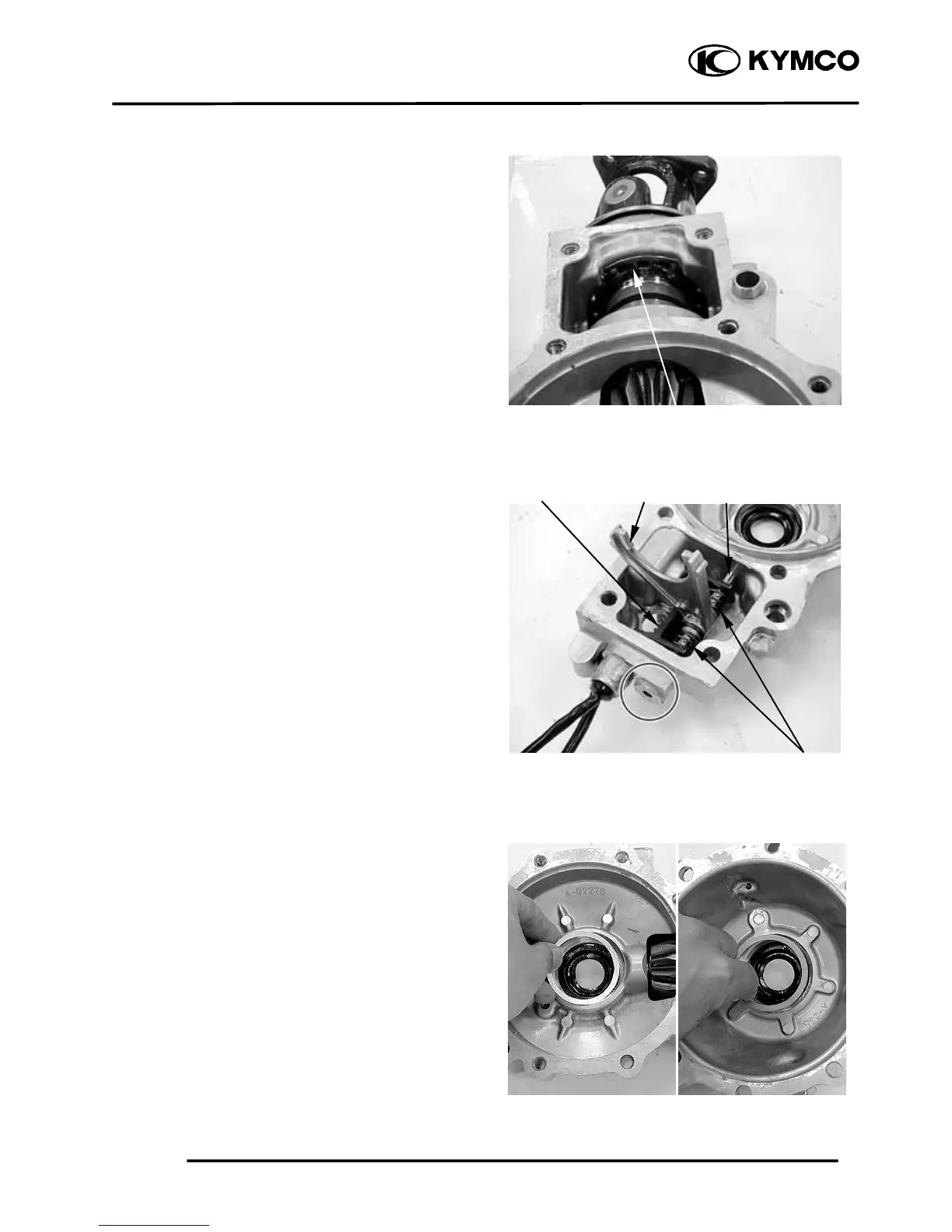

Fix the universal joint yoke with the snap
ring.
Install the 2WD/4WD shifting fork, springs
and shifting rack as shown.
Apply sealant (three bond: 1215) to the
shifting fork shaft plug and tighten it to the
specified torque.
Torque: 1.5 kgf-m (15 N-m, 11 lbf-ft)
Install the removed shims to the gear case
and its case.
Snap Ring
Springs
Rack Fork Shaf
To Next Page
