13. DRIVE TRAIN
13-30
MXU 500

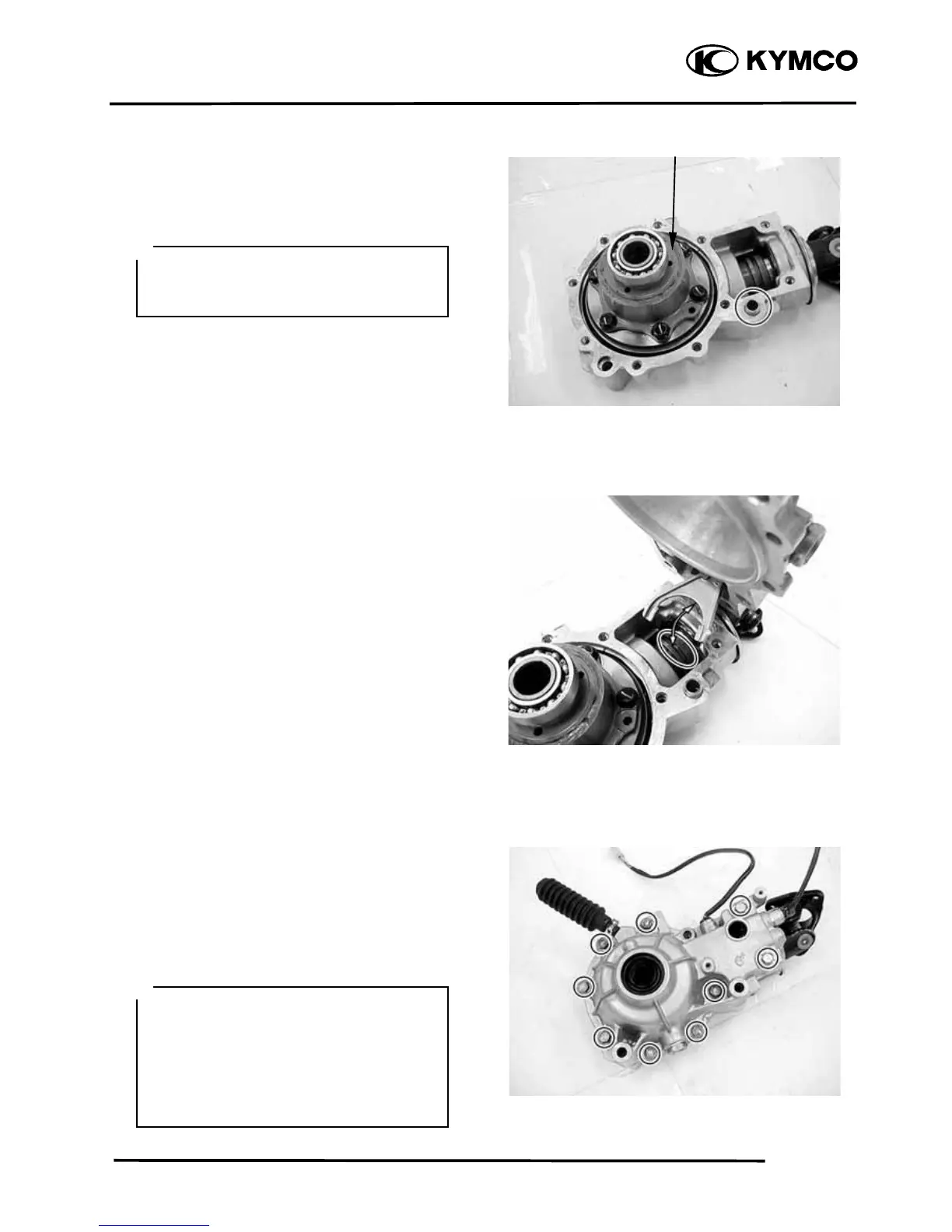

Install the front drive to the right gear case.
Install the dowel pin and apply a sealant
(threebond: 1215) to the mating surface of
the case.
When installing the left gear case, align the
shifting fork with its groove.
Apply three bond: 1215 to the case bolts
and tighten them to the specified torque in a
crisscross pattern in 2 or 3 steps.
Torque: 2.3 kgf-m (23 N-m, 16.5 lbf-ft)
Front Drive Assembly
After the backlash and tooth contact
have been checked or adjusted, apply a
sealant to the mating surface of the case.
＊
Ɣ After the backlash and tooth contact
have been checked or adjusted, apply
three bond: 1215 to the case bolts.
Ɣ It is important to turn the pinion while
tightening the bolts. If the ring gear
shim is too thick, the gears will lock
after only light tightening.
＊
