13. DRIVE TRAIN
13-31
MXU 500

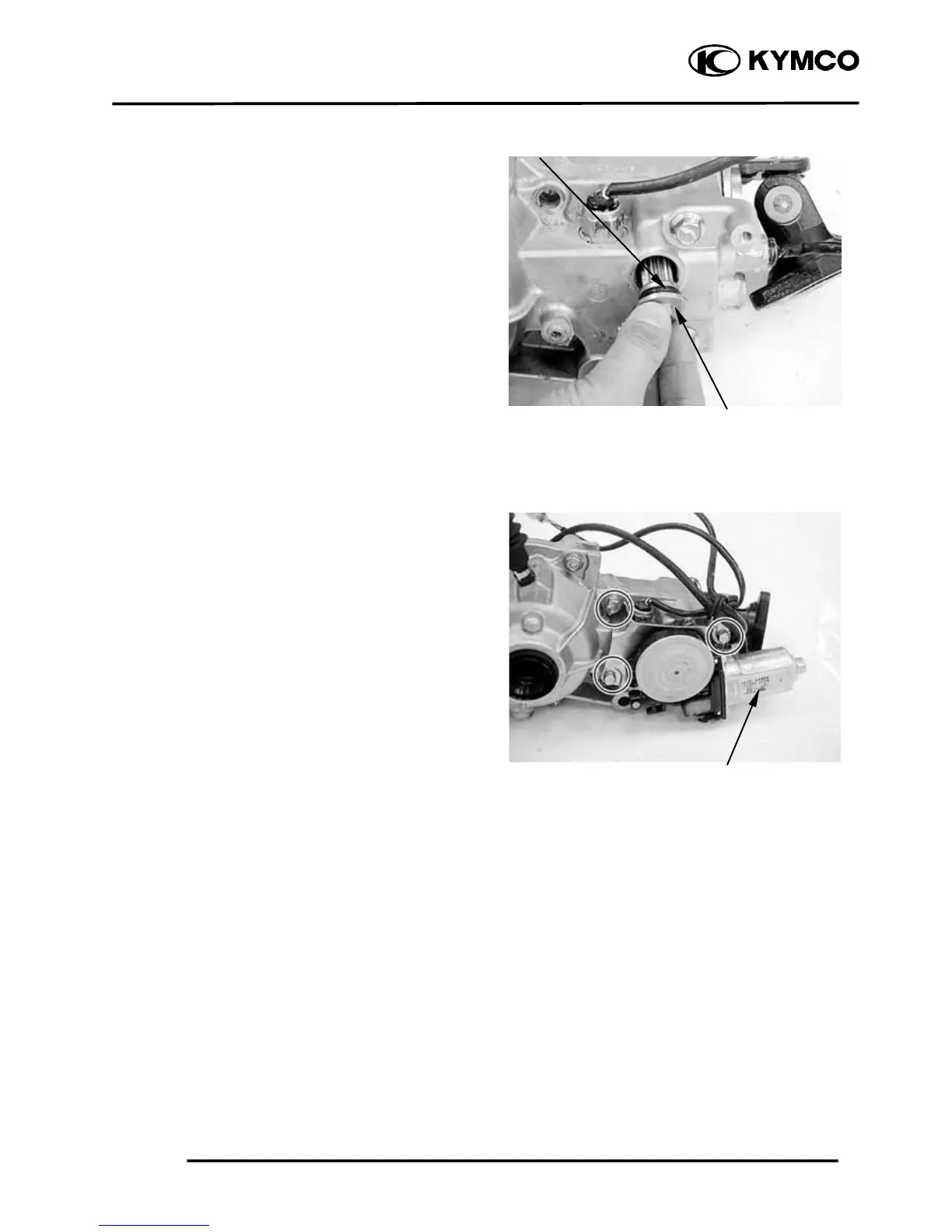

Coat a new O-ring with lightweight lithium-
soap base grease and install the 2WD/4WD
shifting pinion.
Apply three bond: 1215 to the M8 bolt.
Install the 2D/4WD shifting motor and
tighten its mounting bolts to the specified
torque.
Torque:
M8: 2.3 kgf-m (23 N-m, 16.5 lbf-ft)
M6: 1.2 kgf-m (12 N-m, 8.5 lbf-ft)
Shifting Pinion
O-ring
Shifting Motor Assembly
To Next Page
