13. DRIVE TRAIN
13-34
MXU 500

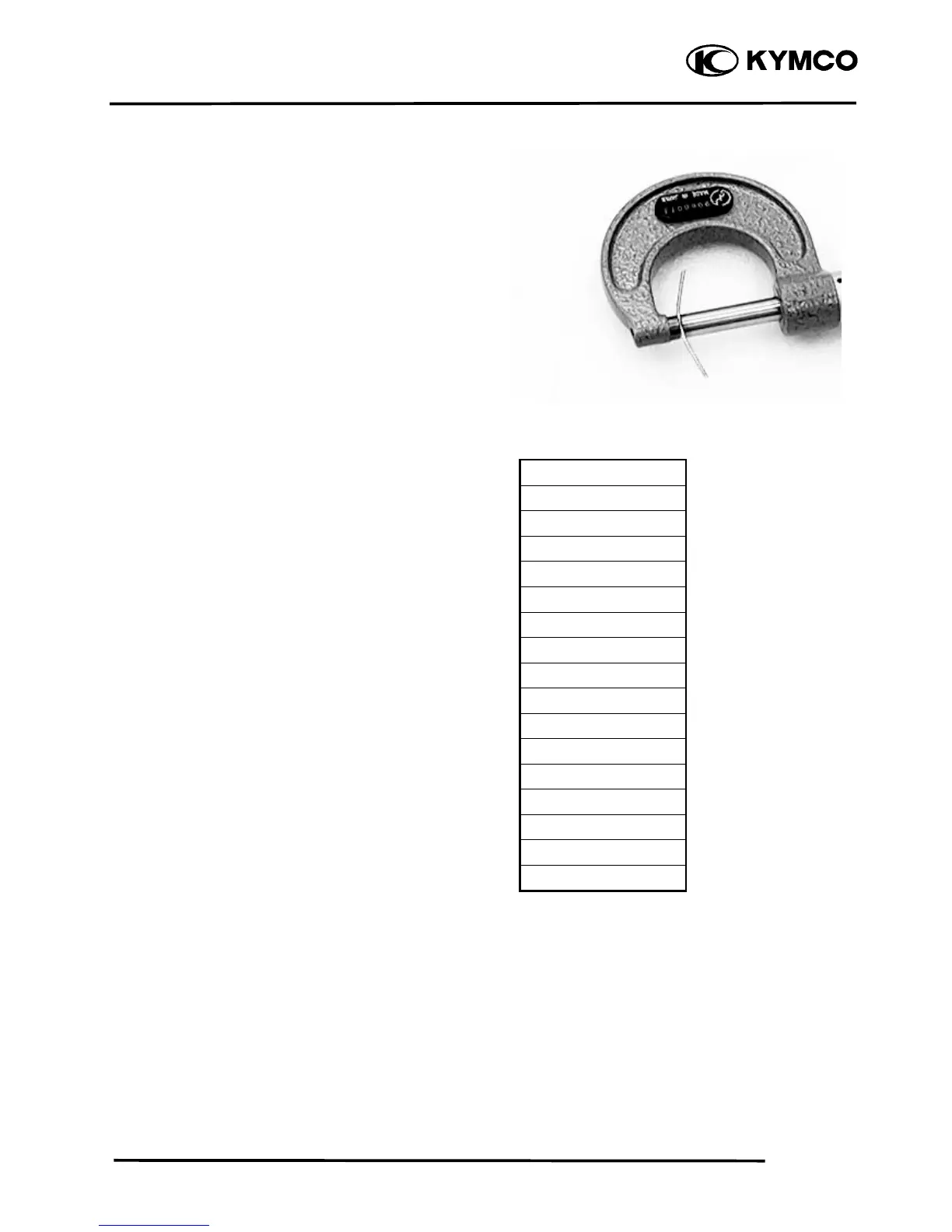

Remove the gear case.
Measure the thickness of compressed solder
with the micrometer.
Select the proper size of shim(s) from the
right chart, according as the compressed
solder thickness.
After selecting the proper size of shim(s),
check or adjust the backlash and tooth
contact.
Shim thickness
0.7 mm (0.0276 in)
0.75 mm (0.0295 in)
0.8 mm (0.0315 in)
0.85 mm (0.0335 in)
0.9 mm (0.0354 in)
0.95 mm (0.0374 in)
1 mm (0.0394 in)
1.05 (0.0413 in)
1.1 mm (0.0433 in)
1.15 mm (0.0453 in)
1.2 mm (0.0472 in)
1.25 mm (0.0492 in)
1.3 mm (0.0512 in)
1.35 mm (0.0531 in)
1.4 mm (0.0551 in)
1.45 mm (0.0571 in)
