13. DRIVE TRAIN
13-45
MXU 500

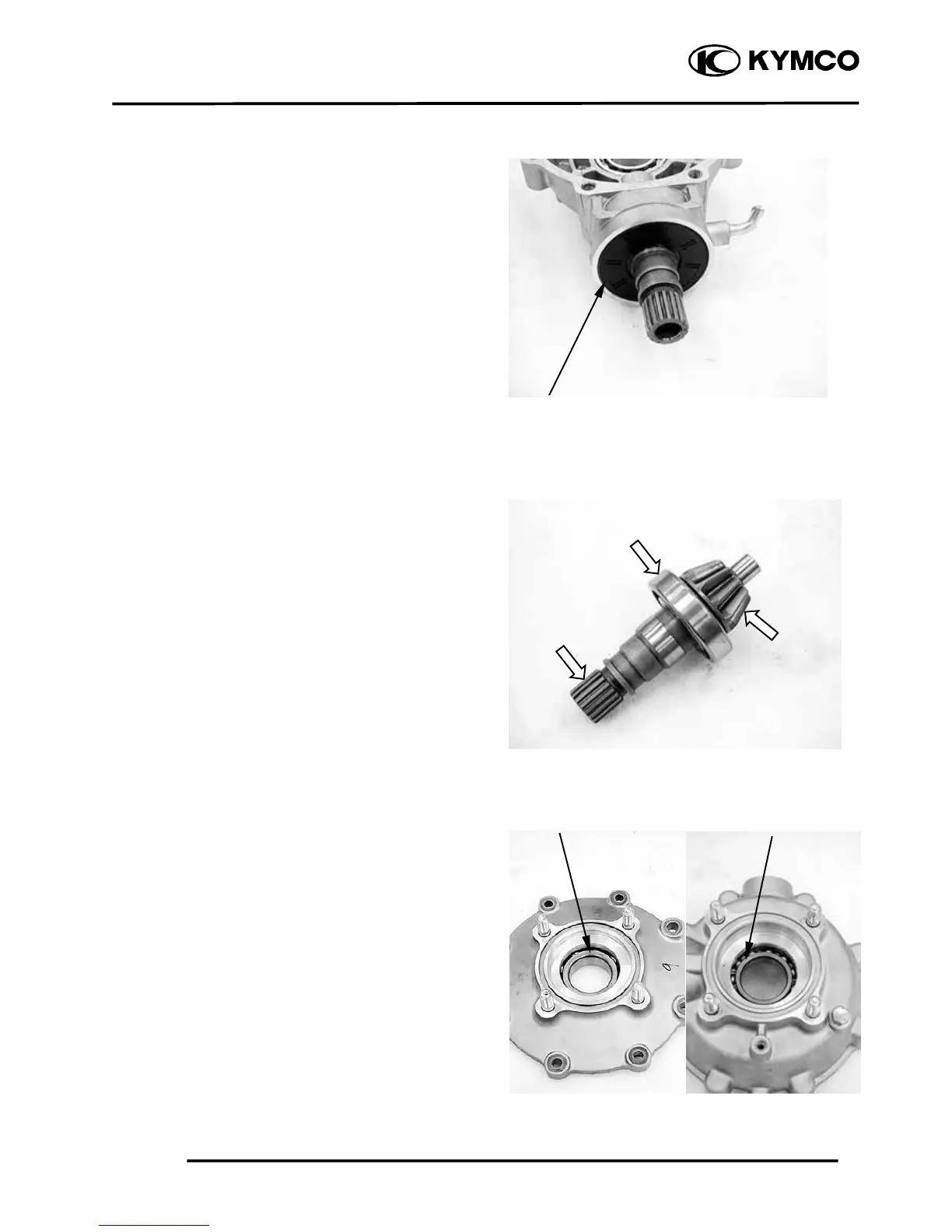

Check the outer race play and smooth
rotation of the bearing by hand while it is on
the pinion gear shaft.
Inspect the pinion gear for wear or damage.
If the pinion gear is damaged, inspect the
ring gear.
If any defects are found, replace the bearing
and gear with the new ones
Inspect the splines of pinion gear shaft for
wear or damage.
If any defects are found, replace the pinion
gear shaft with a new one.
Check the cover and case bearings for wear
or damage.
If any wear or damage is found, replace the
bearing with a new one.
Oil Seal
Bearing Bearing
To Next Page
