13. DRIVE TRAIN
13-50
MXU 500

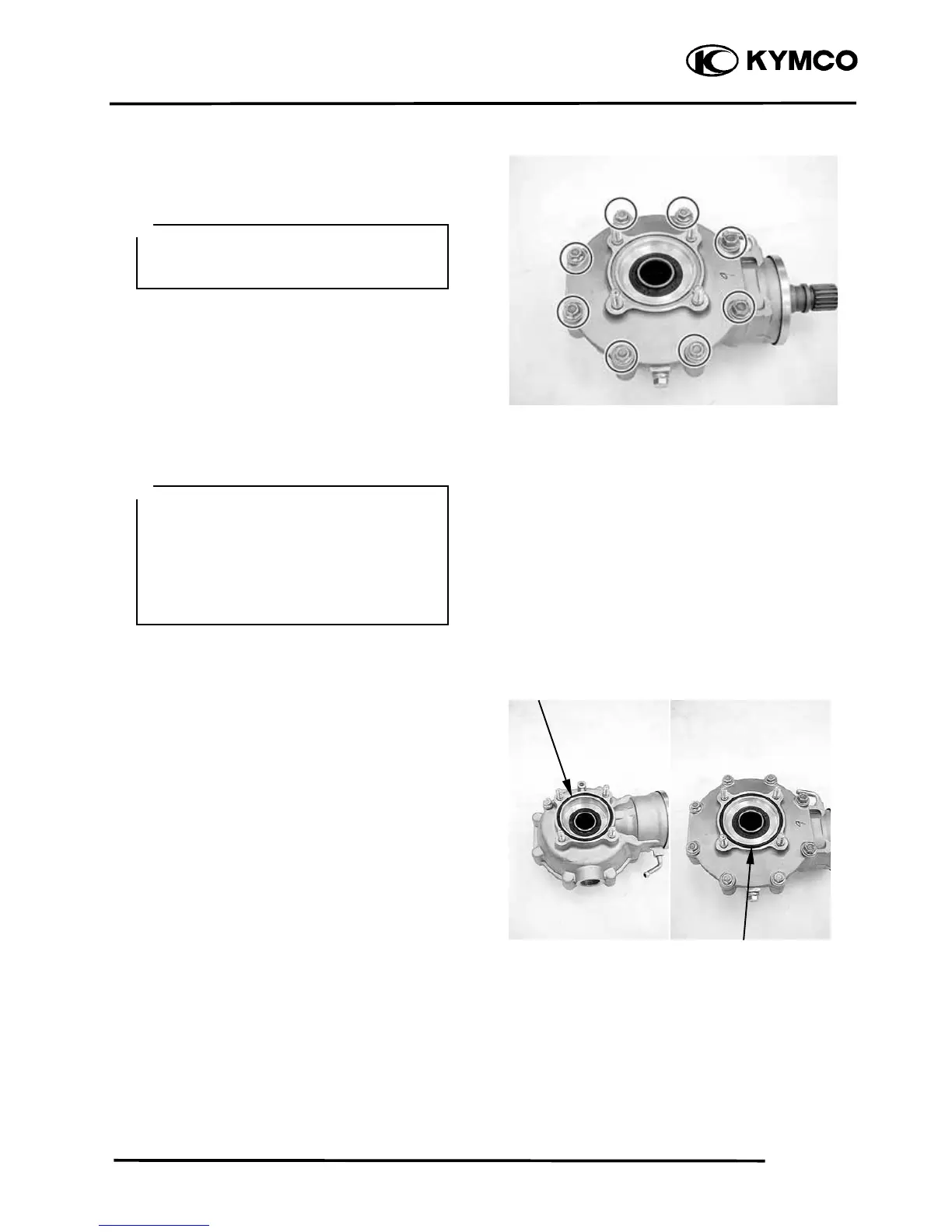

Apply a sealant (three bond: 1215) to the
mating surface of the case, then install the
gear cover.
Apply three bond: 1215 to the case bolts
and tighten them to the specified torque in a
crisscross pattern in 2 or 3 steps.
Torque:
10-mm bolt: 5 kgf-m (49 N-m, 36 lbf-ft)
8-mm bolt: 2.5 kgf-m (25 N-m, 19 lbf-ft)
Apply lightweight lithium-soap base grease
to the new oil rings.
Install the new oil rings into the gear case
and cover.
O-ring (Cover)
O-ring (Case)
After the backlash and tooth contact
have been checked or adjusted, apply a
sealant to the matin
surface of the case.
＊
Ɣ After the backlash and tooth contact
have been checked or adjusted, apply
three bond: 1215 to the case bolts.
Ɣ It is important to turn the pinion while
tightening the bolts. If the ring gear
shim is too thick, the gears will lock
after only light tightening.
＊
To Next Page
