13. DRIVE TRAIN
13-49
MXU 500

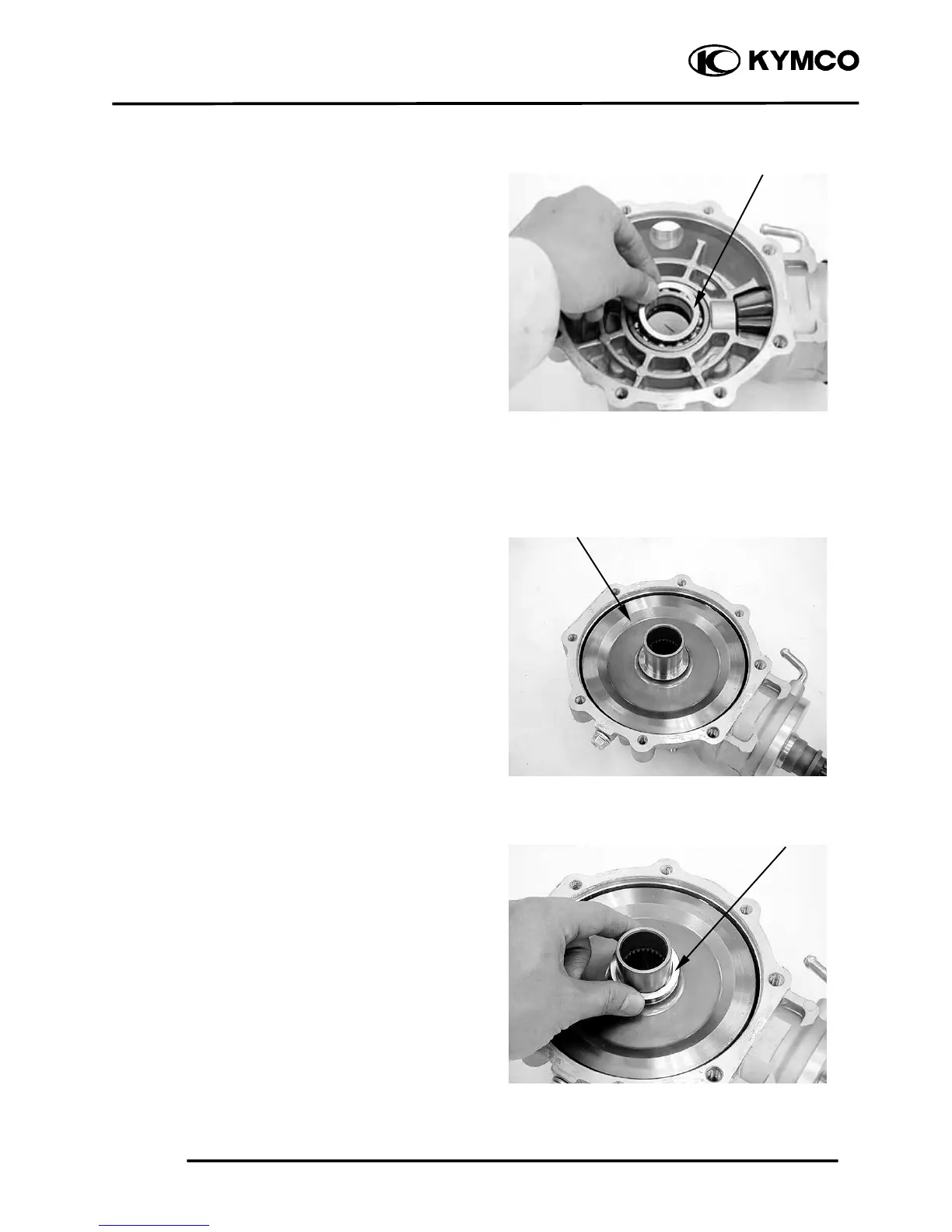

Install the removed left shim to the gear
case.
Install ring gear to the gear case.
Install the removed right shim to the ring
gear.
Shi
m
Shi
m
Ring Gea
r
