14. FRONT WHEEL/FRONT SUSPENSION
STEERING SYSTEM
14-15
MXU 500

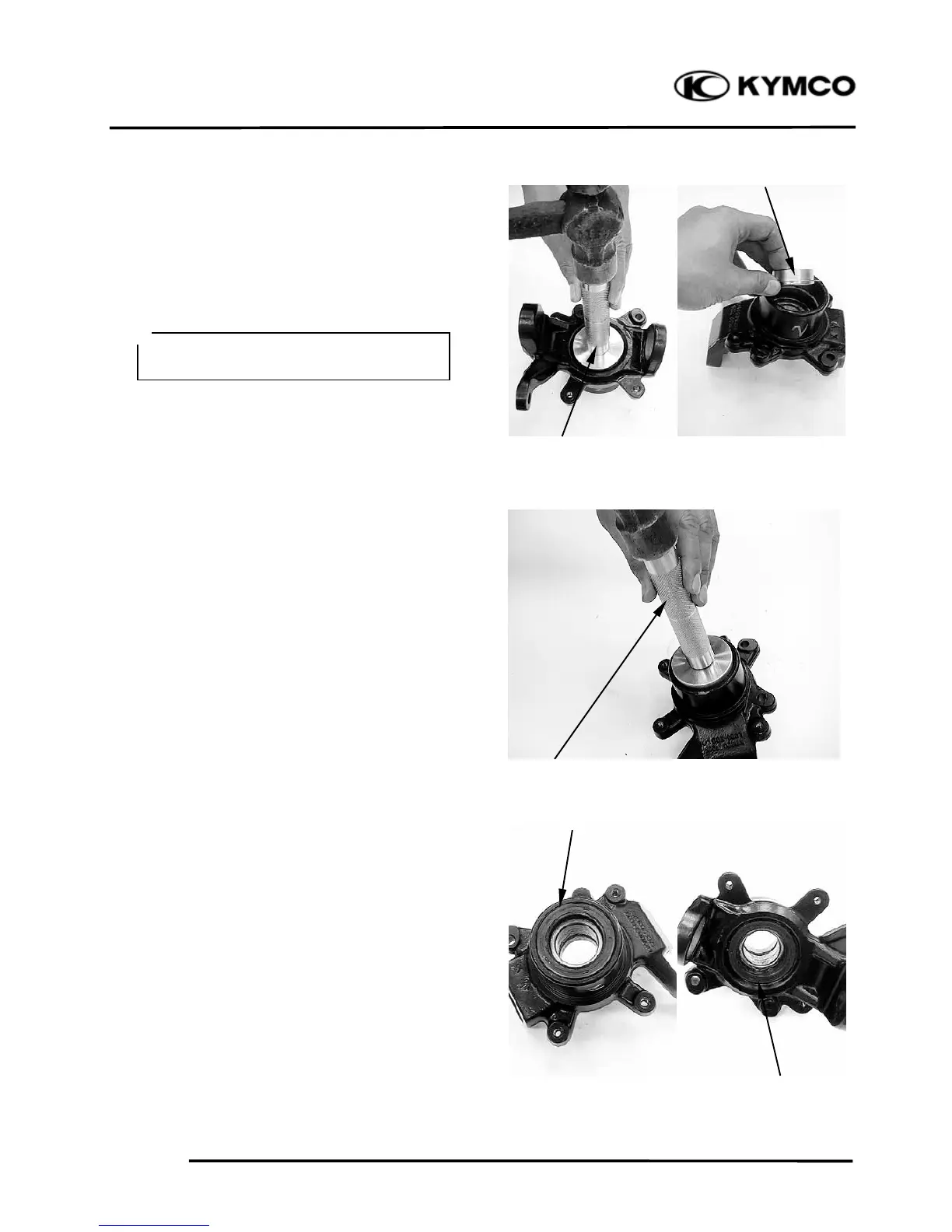

Install the new inner bearing by using the
special tool.
Special tool:
Oil seal and bearing driver A120E00014
Install the spacer into the steering knuckle.
Install the new outer bearing by using the
special tool.
Special tool:
Oil seal and bearing driver A120E00014
Install the new dust seals by using the
special tool.
Special tool:
Oil seal and bearing driver A120E00014
Make sure the long side of the spacer
faces the outer bearing
＊
Bearing Drive
r
Space
r
Bearing Drive
r
Dust Seal
Dust Seal
