15. REAR WHEEL/AXLE/SHOCK
ABSORBER/SWING ARM
15-18
MXU 500

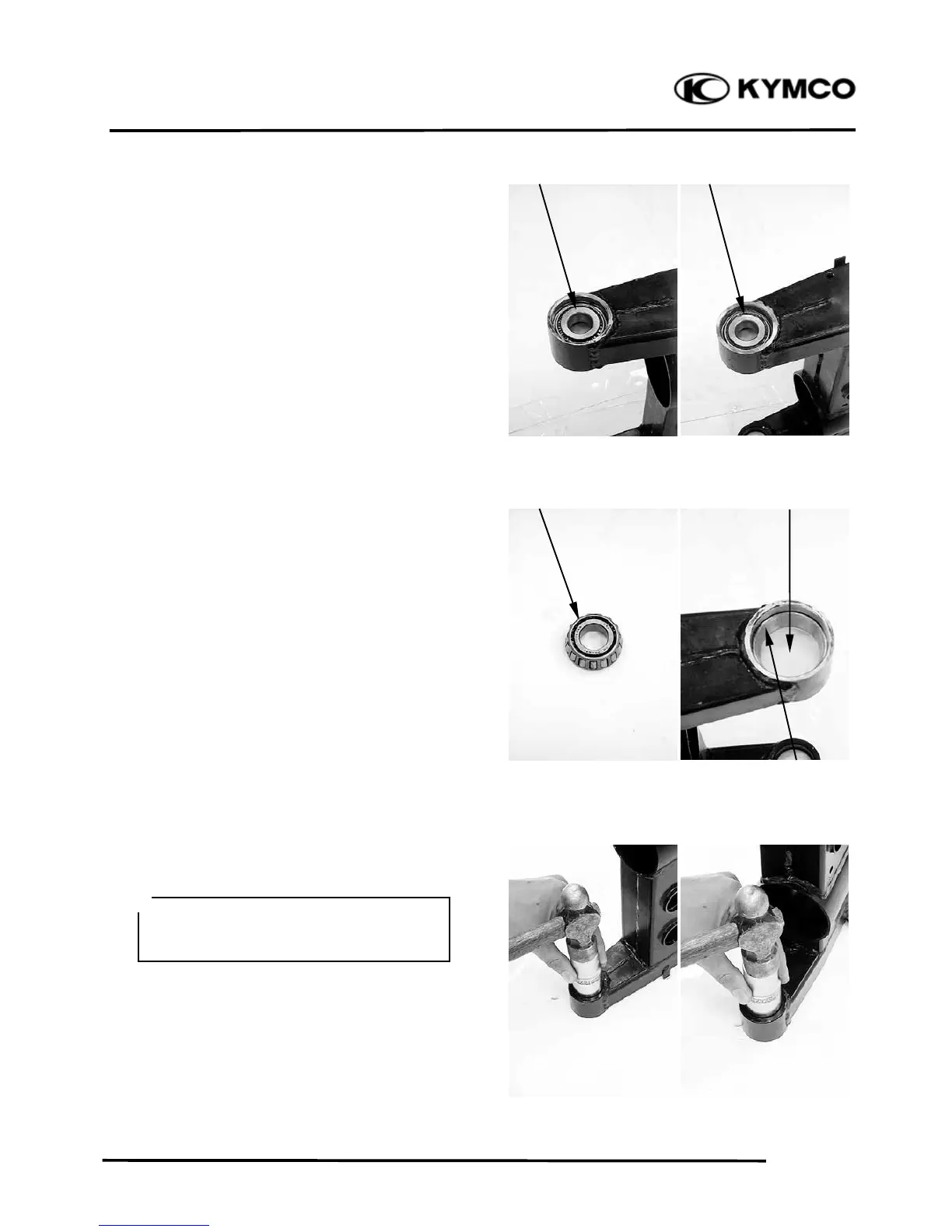

Remove the bearings.
Inspect the swing arm bearings, outer races
and bearing plates, if any damages are
found, replace the them with new ones.
Remove the swing arm bearings outer races
and bearing plates by using a proper pipe.
Bearing Bearing
Outer Race
Bearing Bearing Plate
The removed dust seal, bearing, oute
r
race and bearing plate must be replaced
with new ones.
＊
