15. REAR WHEEL/AXLE/SHOCK
ABSORBER/SWING ARM
15-19
MXU 500
ASSEMBLY

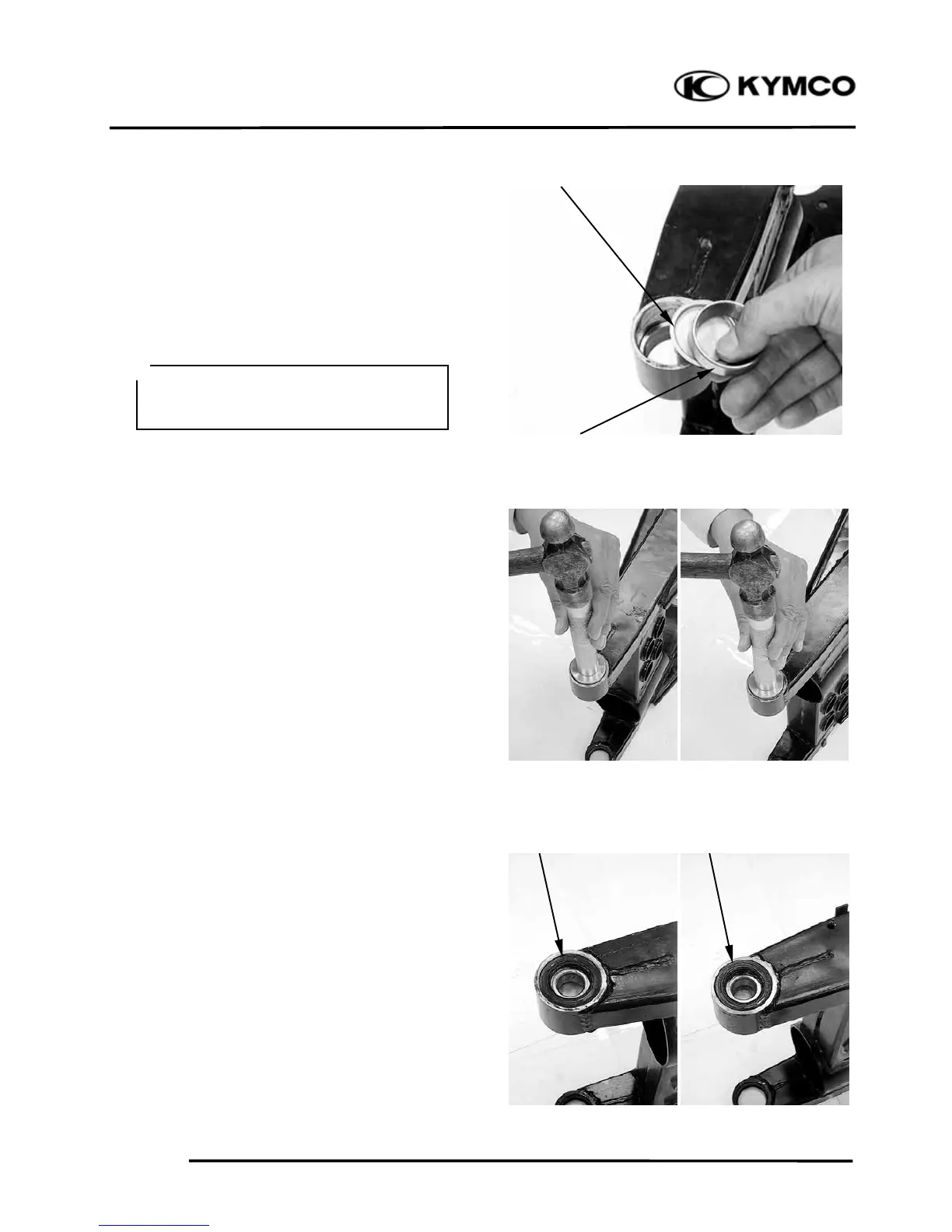

Install the new swing arm bearing outer race
and its new plate to the swing arm by using
the special tool.
Special tool:
Oil seal & bearing driver A120E00014
Apply lightweight lithium-soap base grease
to the swing arm bearings and lips of dust
seals, then install them into the swing arm.
Bearing Outer Race
Bearing Plate
When installing the bearing plate, make
sure that the bulge of bearing plate faces
inside.
＊
Dust Seal Dust Seal
To Next Page
