16. BRAKE SYSTEM
16-5
MXU 500

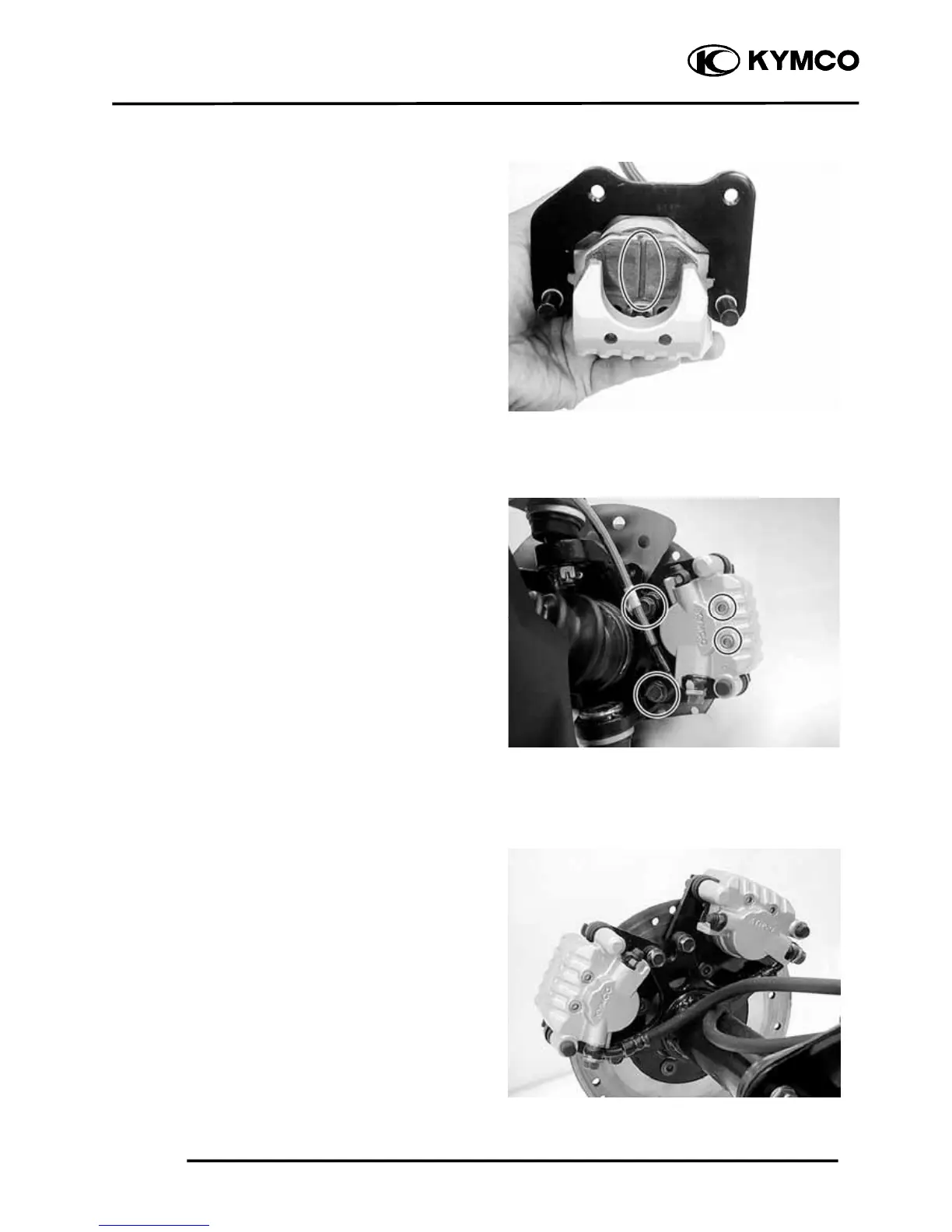

A wear indicator is provided on each brake.
The indicators allows checking of brake
pads wear. Check the position of the
indicator.
Install the new brake pads.
Install the brake pad mounting pins.
Install the brake caliper mounting bolts to
the specified torque.
Torque: 3.2 kgf-m (32 Nm, 25 lbf-ft)
Tighten the brake pad mounting pins.
Torque: 1.8 kgf-m (18 Nm, 13 lbf-ft)
REAR BRAKE PADS (OFF ROAD)
Remove the rear wheel. (
refer to the
“
REAR WHEEL
REMOVAL/INSPECTION/
INSTALLATION
” section in the chapter
15
).
The replacement of rear brake and front
brake pads are the same.
