17. BATTERY/CHARGING SYSTEM
17-9
MXU 500
Ground line

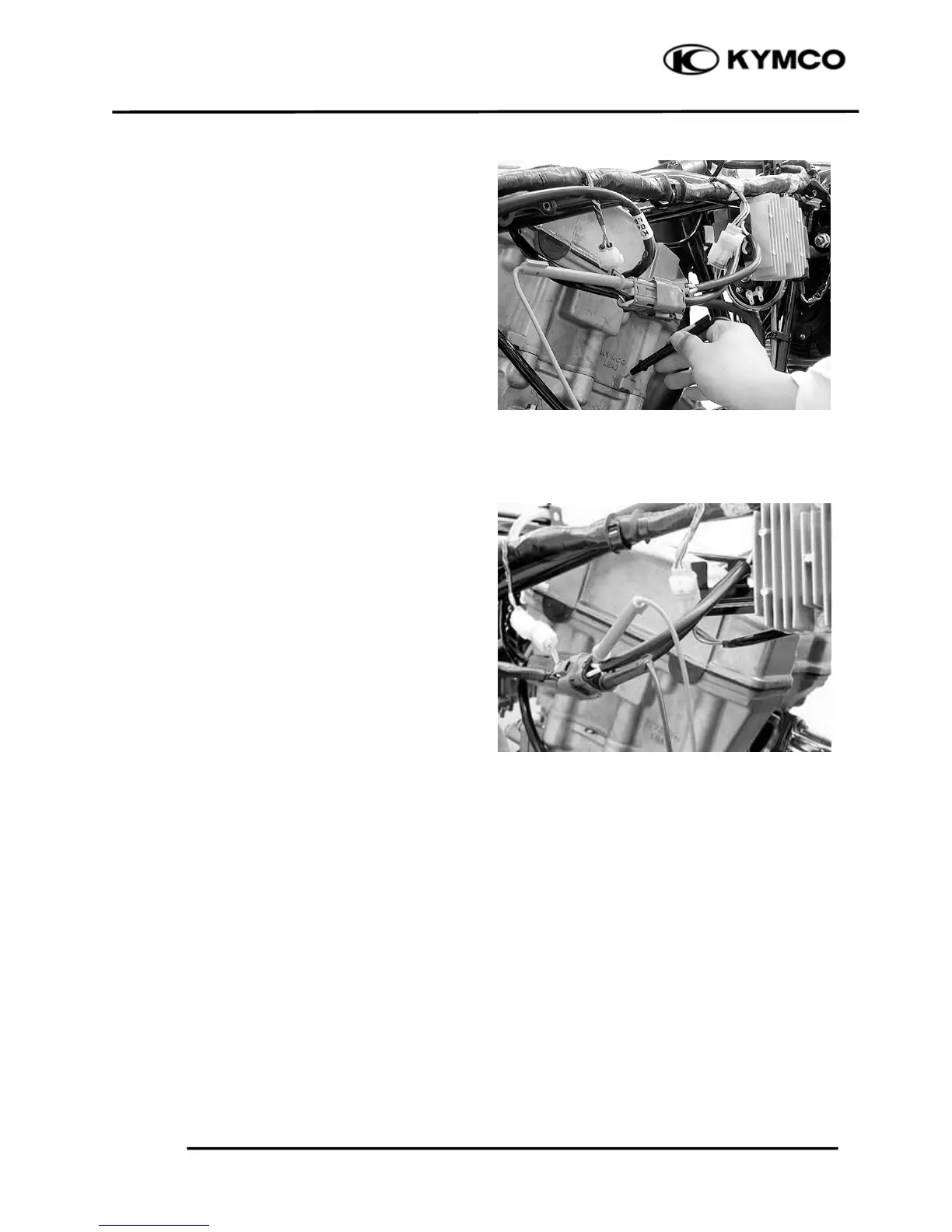

Check the continuity between the Green wire
terminal and ground.
There should be continuity at all times.
Charging coil line
Measure the resistance between each Yellow
wire terminals.
Standard: 0.1－0.3 : (20ºC/68ºF)
Check for continuity between each Yellow
wire terminal and ground.
There should be no continuity.
