17. BATTERY/CHARGING SYSTEM
17-13
MXU 500

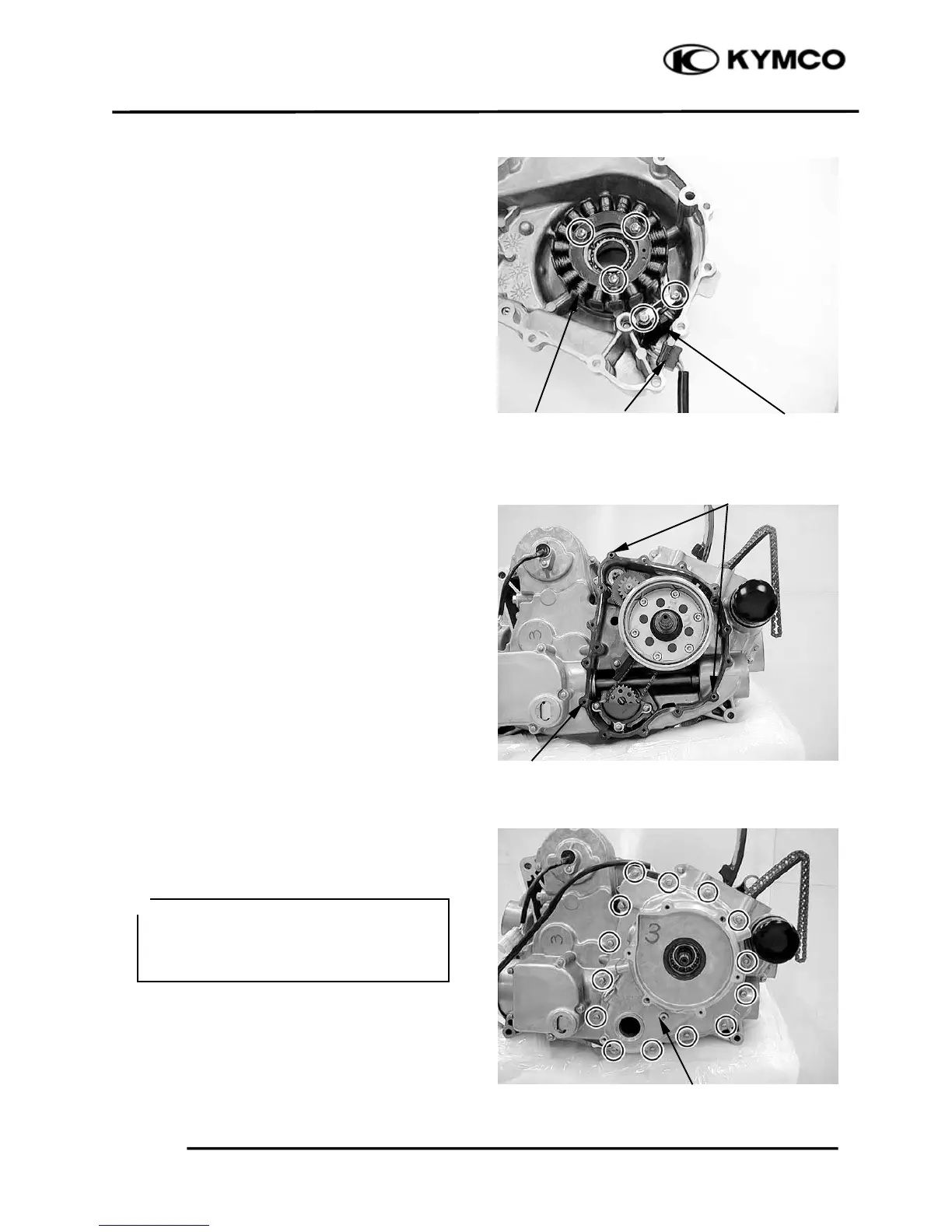

INSTALLATION
Install the stator and tighten the stator mount
bolts to the specified torque.
Torque: 1.2 kgf-m (12 N-m, 9 lbf-ft)
Apply sealant to the grommet seating surface
and install it to the cover groove properly.
Install the pulse coil and tighten mount bolts
to the specified torque.
Torque: 1.2 kgf-m (12 N-m, 9 lbf-ft)
Clean the mating surfaces of the right
crankcase and cover.
Install the dowel pins and gasket.
Install the right crankcase cover and tighten
the bolts in a crisscross pattern in 2 or 3 steps.
Stator Grommet Pulse
Dowel Pins
Gaske
FLYWHEEL:
Refer to the “STARTER CLUTCH
REMOVAL/INSPECTION/INSTALL
ATION” section in the chapter 19
＊
