LABORIE Goby Owner’s Manual GOBY-UM02 51
5.6.3.5 Siroky Nomogram
The Siroky Nomogram was developed to provide an accurate and reliable indication of outflow obstruction.
ix
The UDS
software provided by LABORIE will help the operator to compare the results of a patient’s pre-therapy and post-therapy
Uroflow test.
To view the Siroky Nomogram click Info > X-Y Plot > Siroky Nomogram.
Once you select the Siroky Nomogram option, a window opens that contains the graphical representation of the Average
and Maximum flow rates as developed by Siroky et al (Figure 55).
NOTE: The Siroky Nomogram is valid for male adult patients only.

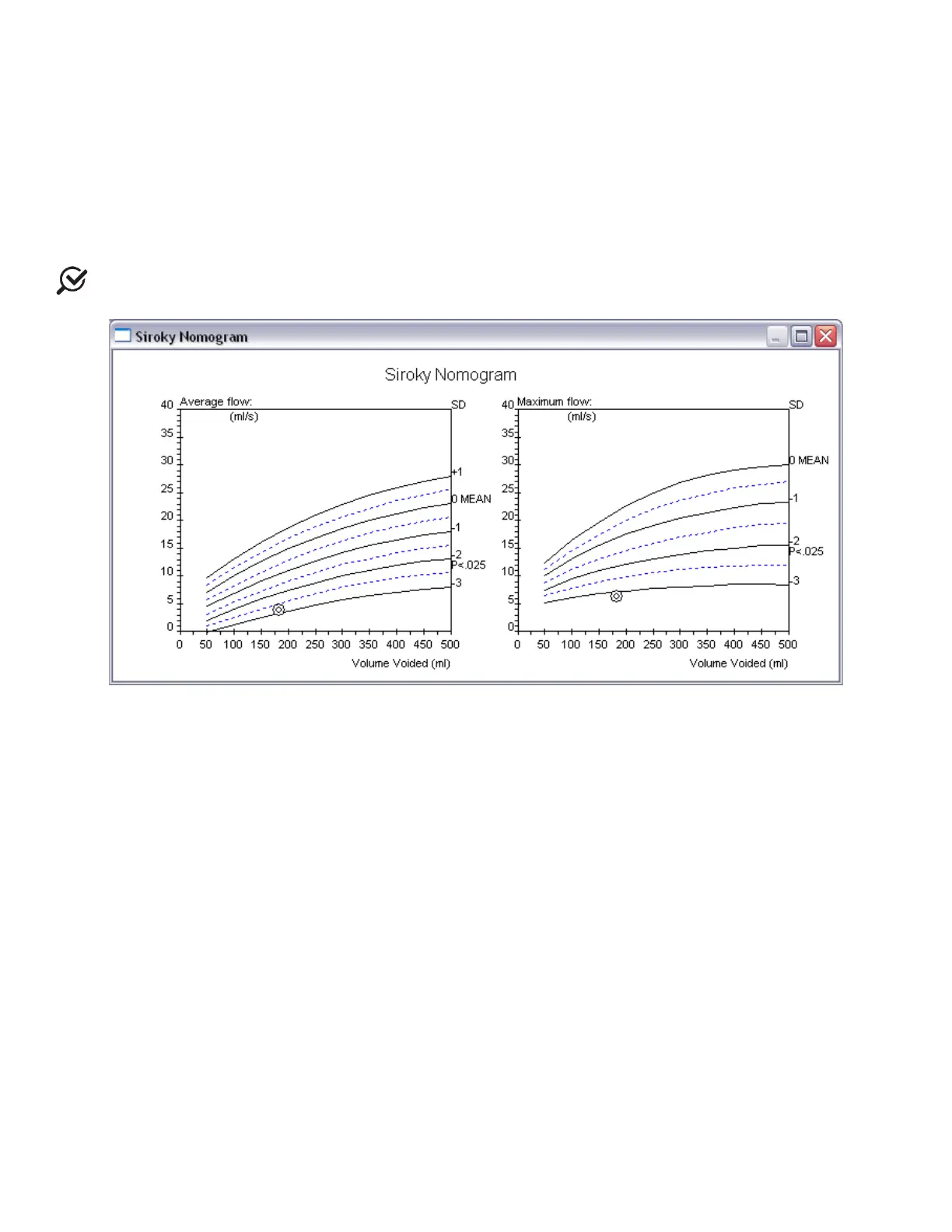

Figure 55: Siroky Nomogram Window
From here you can compare the average and maximum flow rates for the specific test. The plotted circles on the graph
represent where the patient lies on the curve.
Once you have viewed the graph, click the X in the upper-right corner to exit and return to the UDS graph window.
