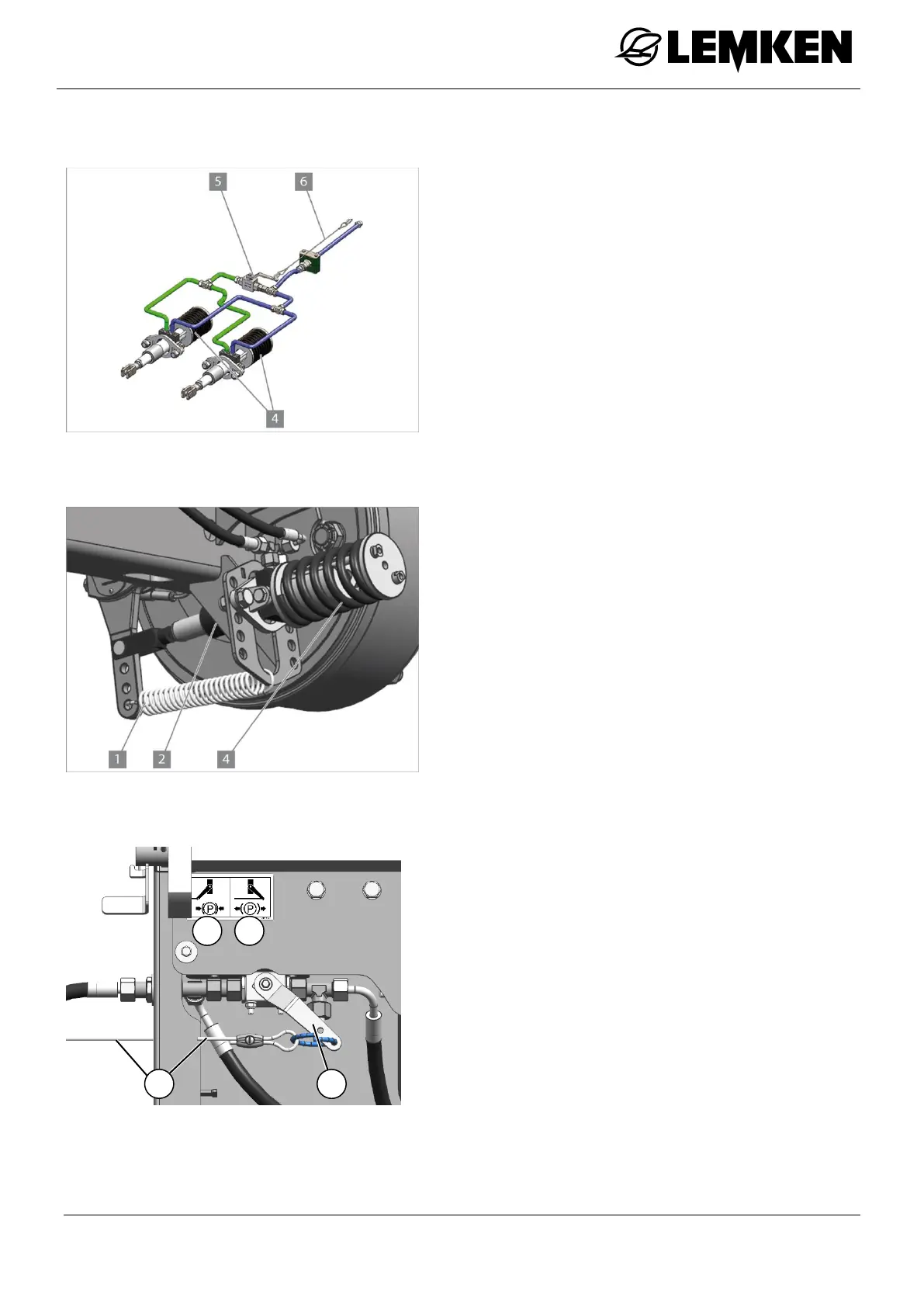

Parking brake
Overview of hydraulic braking system
The parking brake prevents the implement
rolling away.
Parking brake, braked
By opening the brake valve (5), the preten-
sioned compression spring (4) actuates the
braking system via the hydraulic ram (2)
and the brake lever (1).
Activate the parking brake (7):
 Pull the break away cable (6) manually.
or
 Open the brake valve (5).
Release the parking brake (8):
Close the brake valve (5).
