4. Parameters
4-42
Parameter Unit Initial
Details
Code Name Minimum Maximum
P3-13
Program JOG operation
speed 1
[RPM] 0
Sets operation speed/operation time for programs 1
to 4 during program JOG operation [Cn-01].
A test run repeats from step 1 to step 4.
Sets operation speed ([P3-13]-[P3-16]) and
operation time ([P3-17]-[P3-20]) for each step.

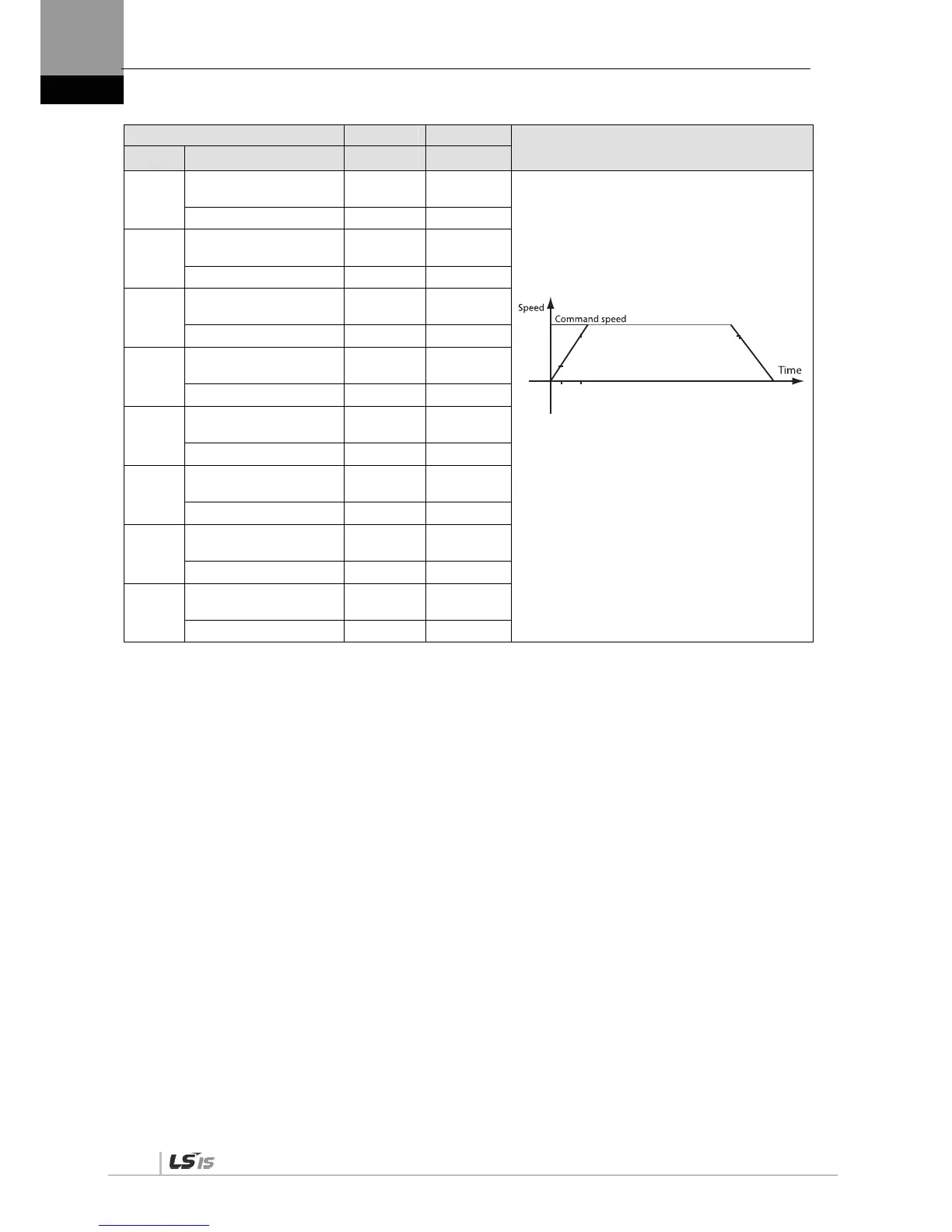

E.g.) Step 1 operation
Program jog speed 1 -6000 6000
P3-14
Program JOG operation
speed 2
[RPM] 3000
Program jog speed 2 -6000 6000
P3-15
Program JOG operation
speed 3
[RPM] 0
Program jog speed 3 -6000 6000
P3-16
Program JOG operation
speed 4
[RPM] -3000
Program jog speed 4 -6000 6000
P3-17
Program JOG operation
time 1
[ms] 500
Program jog time 1 0 65535
P3-18
Program JOG operation
time 2
[ms] 5000
Program jog time 2 0 65535
P3-19
Program JOG operation
time 3
[ms] 500
Program jog time 3 0 65535
P3-20
Program JOG operation
time 4
[ms] 5000
Program jog time 4 0 65535
