5.2.11 Automatic Speed Command Offset Correction
[Cn-10]
This calibrates the offset of analog speed commands automatically.
The range of adjustable speed command analog voltage is from +1 V to -1 V. If offset voltage
exceeds this range, [oVrnG] is displayed and calibration is not allowed.
You can check the corrected offset value in the analog speed offset [P2-18].

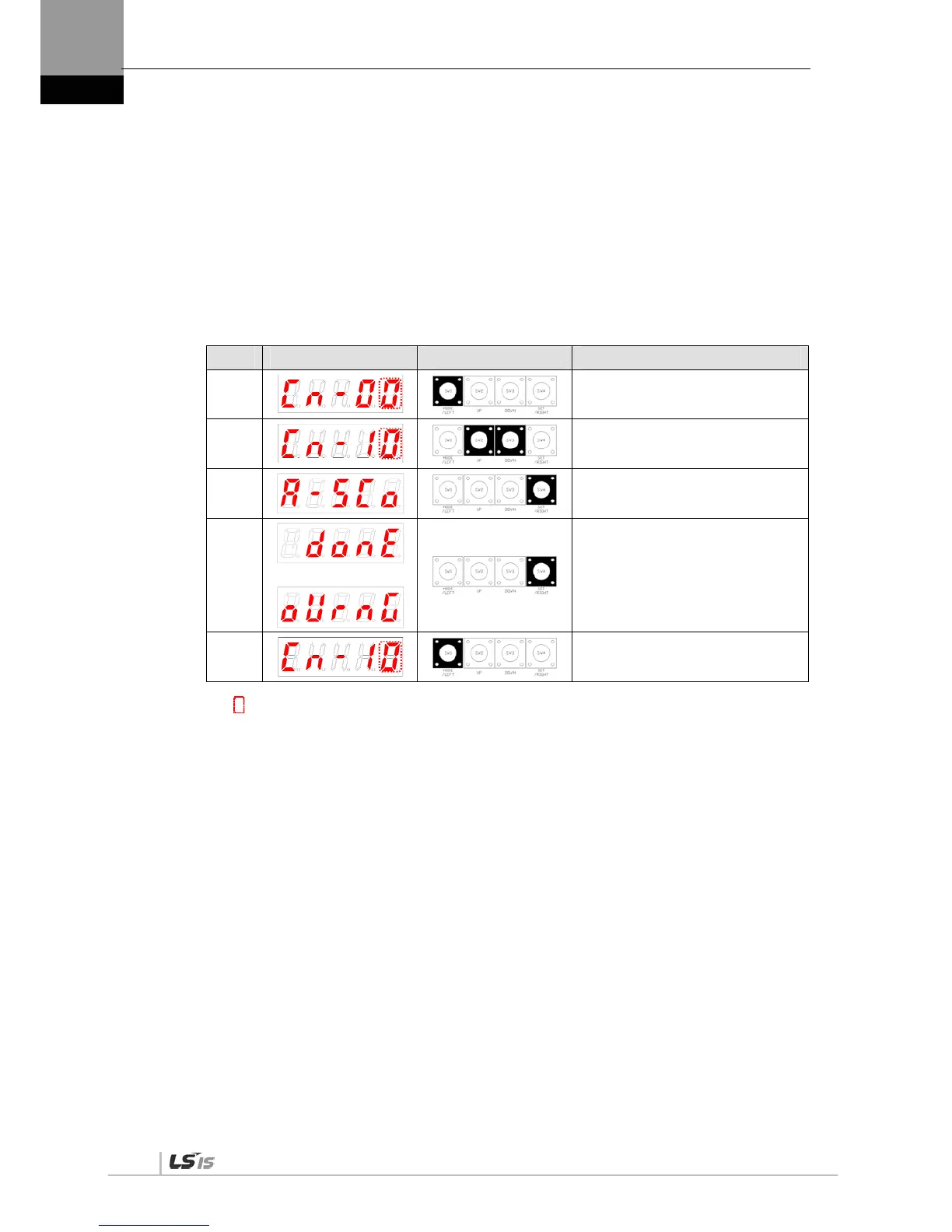

[Example of handling automatic speed command offset calibration]
Order Loader Displays Keys to Use What to Do
1
Press [MODE] to display [Cn-00].
2
Press [UP] or [DOWN] to move to
[Cn-10].
3
Press [SET] to enter offset correction.
4
or
Press [SET] to compensate offset.
[done] is displayed.
If the value exceeds the allowed
range, [oVrnG] is displayed.
5
Press [MODE] for a second to return
to [Cn-10].
※ “ ” indicates flickering.
To Next Page
