7. Product Specifications
7-33

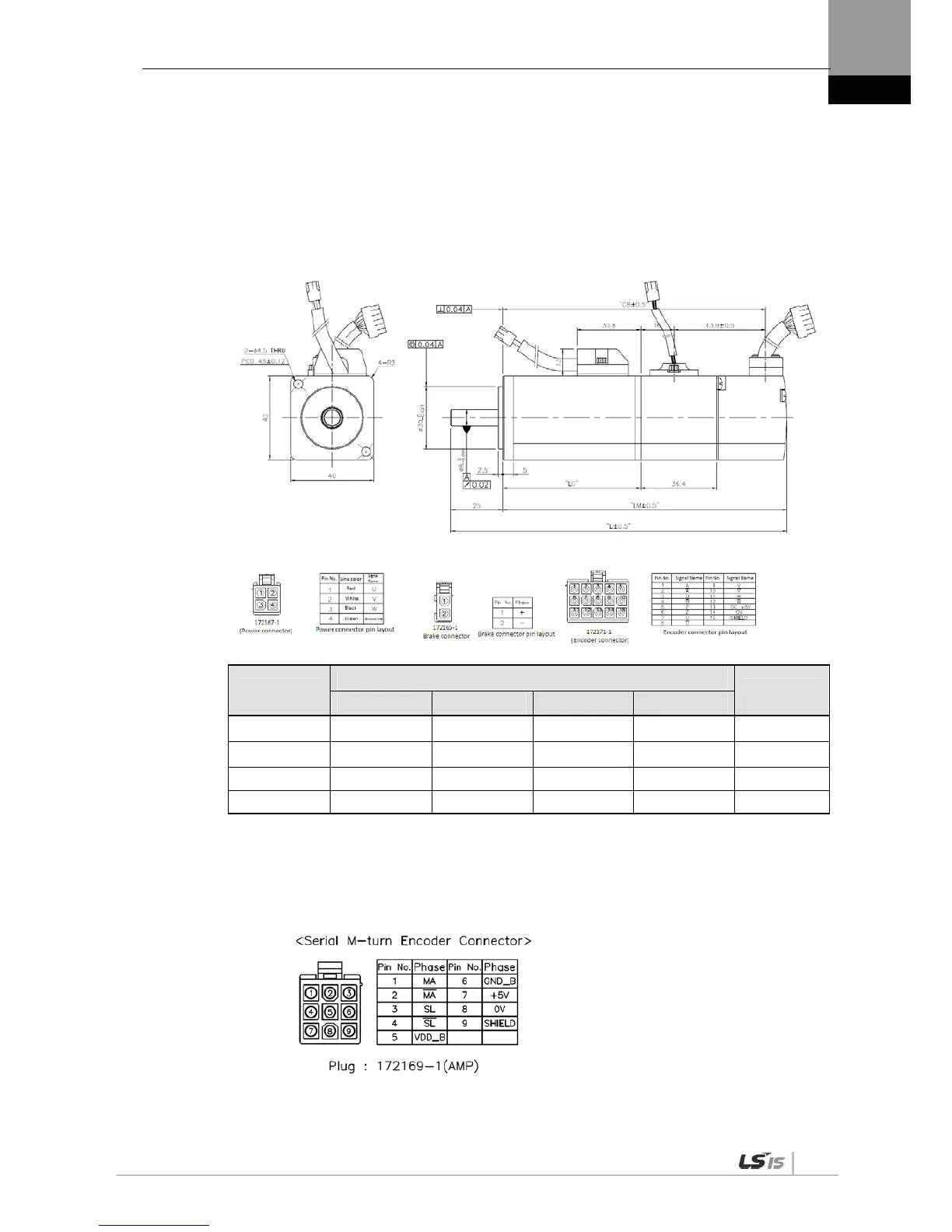

7.1.2 Outline Drawing
 SA Series | XML-SAR3A, XML-SAR5A, XML-SA01A, XML-
SA015A
Name
External Dimensions
Weight (kg)
L LM LC CB
SAR3A 101.3(137.6) 76.3(112.6) 42.5(42.4) 66.3(102.3) 0.32(0.67)
SAR5A 108.3(144.6) 83.3(119.6) 49.5(49.4) 73.3(109.3) 0.38(0.73)
SA01A 125.3(161.6) 100.3(136.6) 66.5(66.4) 90.3(126.3) 0.5(0.85)
SA015A 145.3 120.3 86.5 110.3 0.7
NOTE 1) The standard shaft end for 40 flange is straight.
NOTE 2) Use DC 24 [V] for brake-opening power.
NOTE 3) The sizes in parentheses apply when attached to brakes.(Except SA015A)
NOTE 4) Option specification; Serial M-turn Encoder PinMap
