LSIS XDL-L7SA002X

7. Product Specifications
7-34
 SB Series | XML-SB01A, XML-SB02A, XML-SB04A
Name

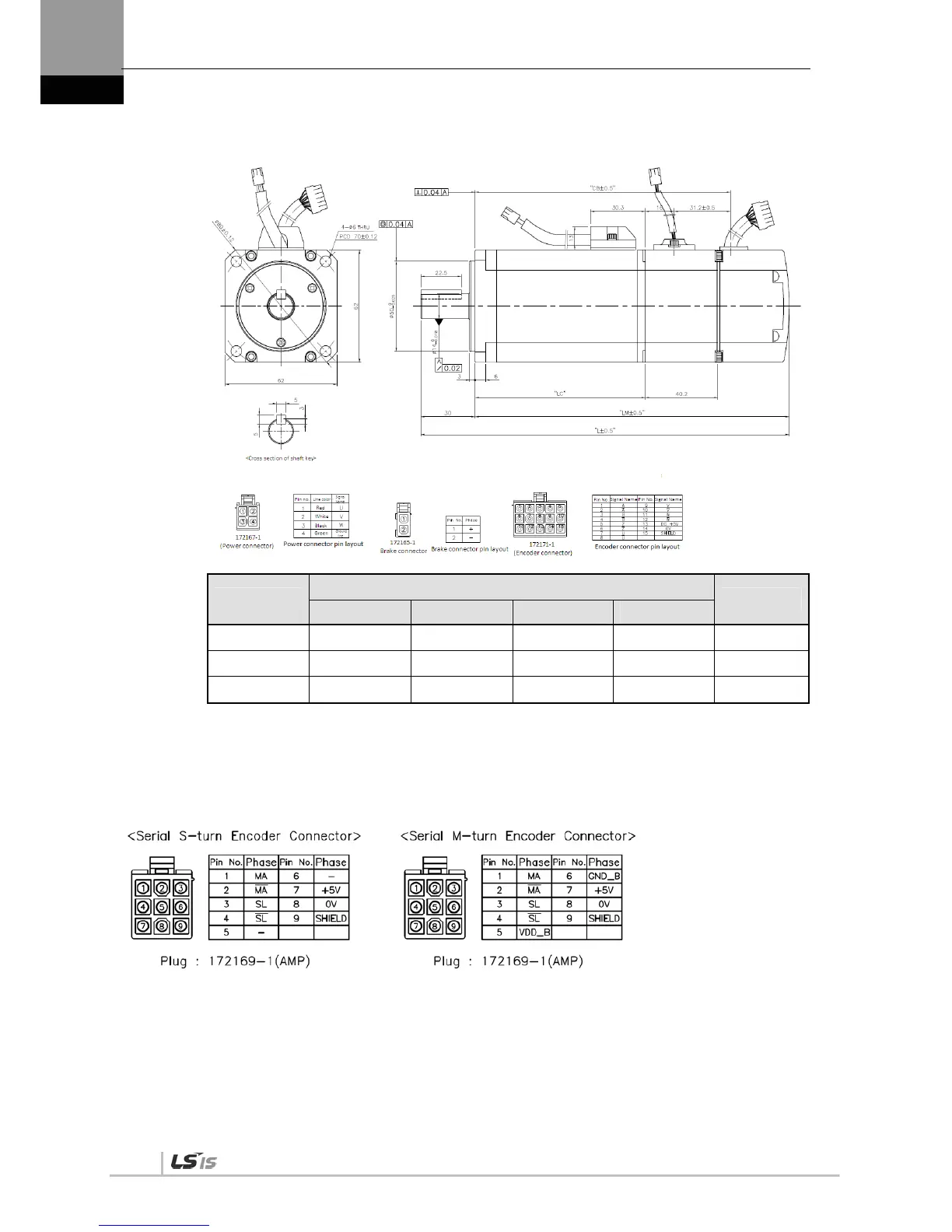

External Dimensions
Weight (kg)
L LM LC CB
SB01A 122(162) 92(132) 52.5(52.3) 59.5(99.5) 0.82(1.4)
SB02A 136(176) 106(146) 66.5(66.3) 73.5(113.5) 1.08(1.66)
SB04A 164(199) 134(169) 94.5(94.3) 101.5(141.5) 1.58(2.16)
NOTE 1) Use DC 24 [V] for brake-opening power.
NOTE 2) The sizes in parentheses apply when attached to brakes.
NOTE 3) Option specification; Serial M-turn Encoder PinMap
