7. Product Specifications
7-35

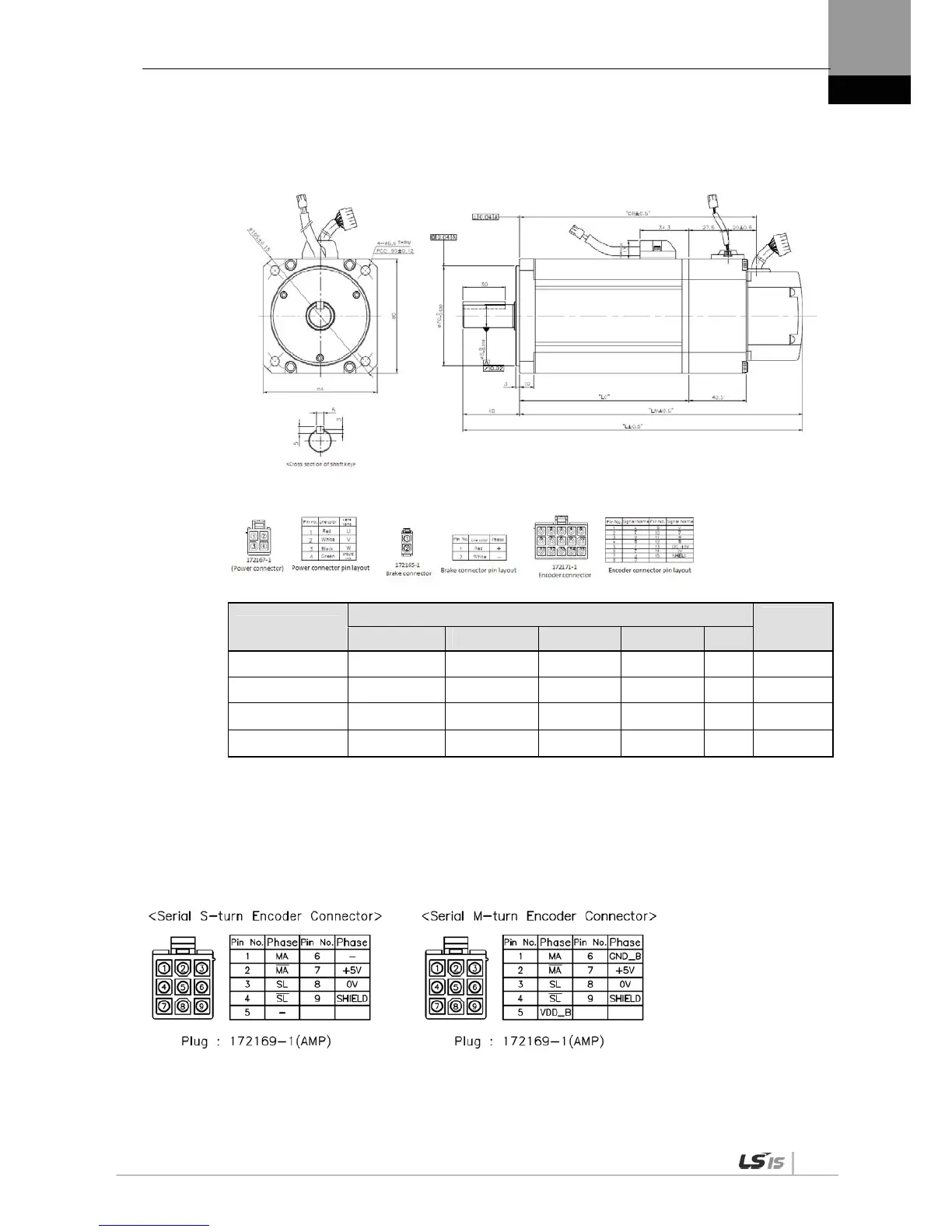

SC Series | XML-SC04A,SC03D, XML-SC06A,SC05D,
XML-SC08A,SC06D, XML-SC10A,SC07D
Name
External Dimensions
Weight
(kg)
L LM LC CB S
SC04A, SC03D 158.5(198.8) 118.5(158.8) 79(78.8) 86(126.3) 14 1.88(2.92)
SC06A, SC05D 178.5(218.8) 138.5(178.8) 99(98.8) 106(146.3) 16 2.52(3.56)
SC08A, SC06D 198.5(238.8) 158.5(198.8) 119(118.8) 126(166.3) 16 3.15(4.22)
SC10A, SC07D 218.5(258.8) 178.5(218.8) 139(138.8) 146(186.3) 16 3.80(4.94)
NOTE 1) Use DC 24 [V] for brake-opening power
NOTE 2) The sizes in parentheses apply when attached to brakes
NOTE 3) Option specification; Serial M-turn Encoder PinMap
