2.2.2 Installation Inside the Control Panel

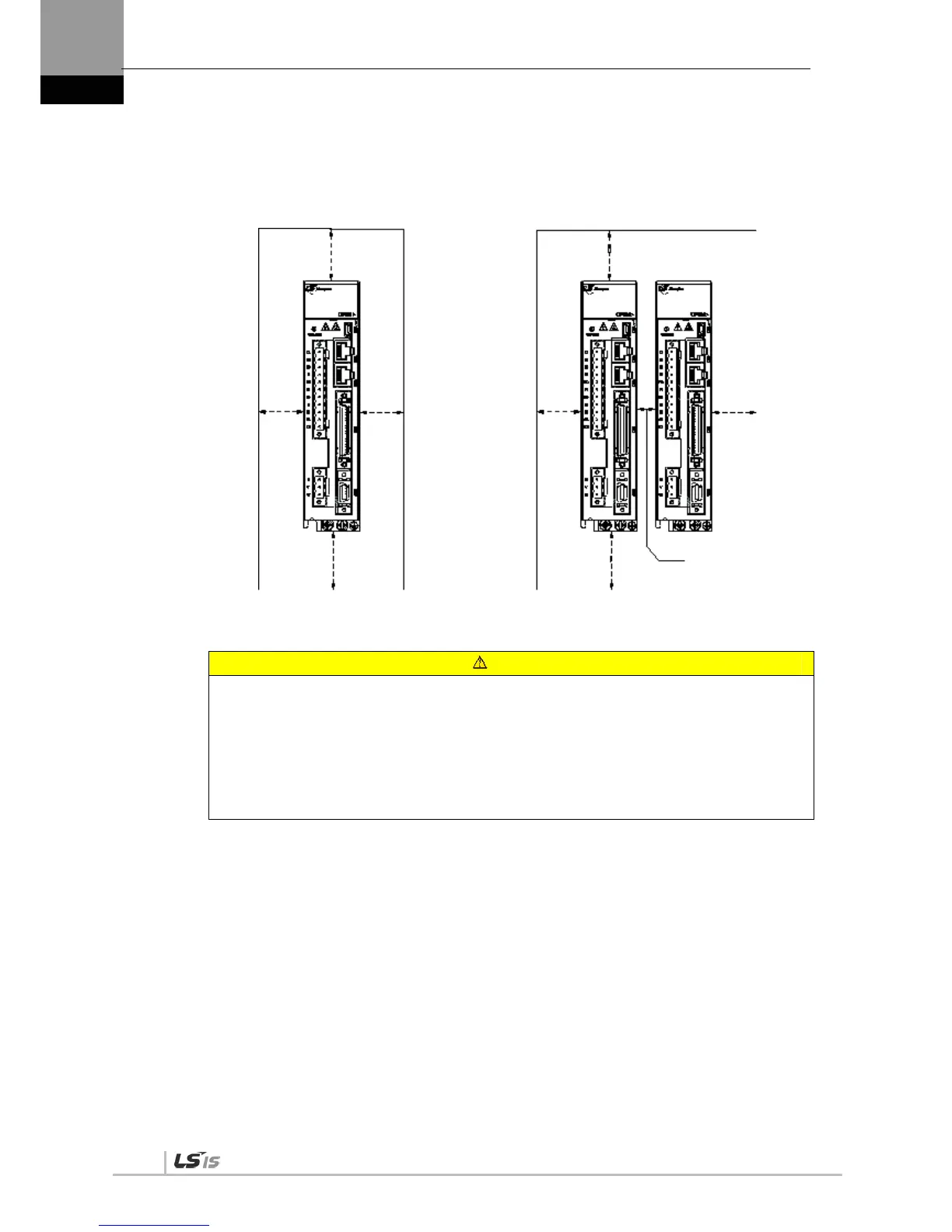

Comply with the spaces specified in the following images for installation inside the control
panel.
Caution
 Make sure that heat does not affect the drive during the installation of external regenerative
resistance.
 When assembling the control panel of the servo drive, make sure that it is sufficiently close to
the wall.
 When assembling the control panel, make sure that metal powder caused by drilling does not
enter the drive.
 Make sure that oil, water, and metal dust do not enter the drive through gaps or the ceiling.
 Protect the control panel with air purge in places where there is a lot of harmful gas or dust.
When installing 1 unit:
When installing 2 or more units:
40 mm or
longer
10 mm or
longer
10 mm or
longer
40 mm or
longer
100 mm
or longer
30 mm or
longer
30 mm or
longer
40 mm or
longer
2 mm or longer
