2. Installation
2-2

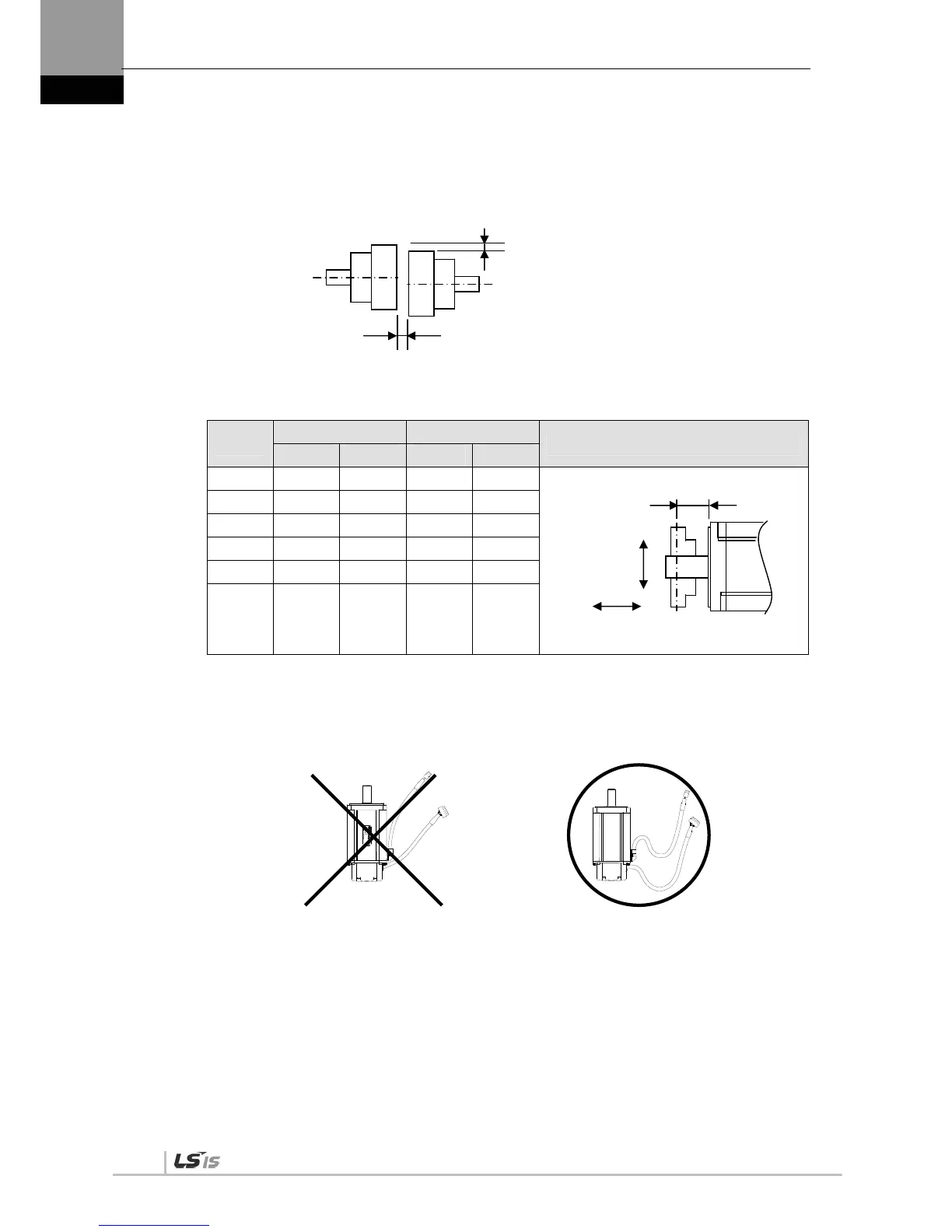

2.1.4 Load Device Connection
For coupling connection: Make sure that the motor shaft and the load shaft are aligned within
the tolerance.
For pulley connection:
Flange
Lateral Load Axial Load
Notes
N kgf N kgf
40 148 15 39 4
60 206 21 69 7
80 255 26 98 10
130 725 74 362 37
180 1548 158 519 53
220 1850 189 781 90
2.1.5 Cable Installation
In case of vertical installation, make sure that no oil or water flows into connection parts.
Do not apply pressure or scratch, to cables.
In case of moving the motor, be sure to use robotic cables to prevent sway.
Load shaft
Motor shaft
0.03 [㎜] or below (peak to peak)
0.03 [㎜] or below (peak to peak)
Nr: 30 [㎜] or
below
Lateral load
Axial load
