5. Handling and Operation
5-13
5.2.9 Output Contact Forced ON/OFF [Cn-08]
Without an upper level controller or I/O jig, the drive forcibly turns on/off the output contact.
(1) Output Contact Forced ON/OFF Setting

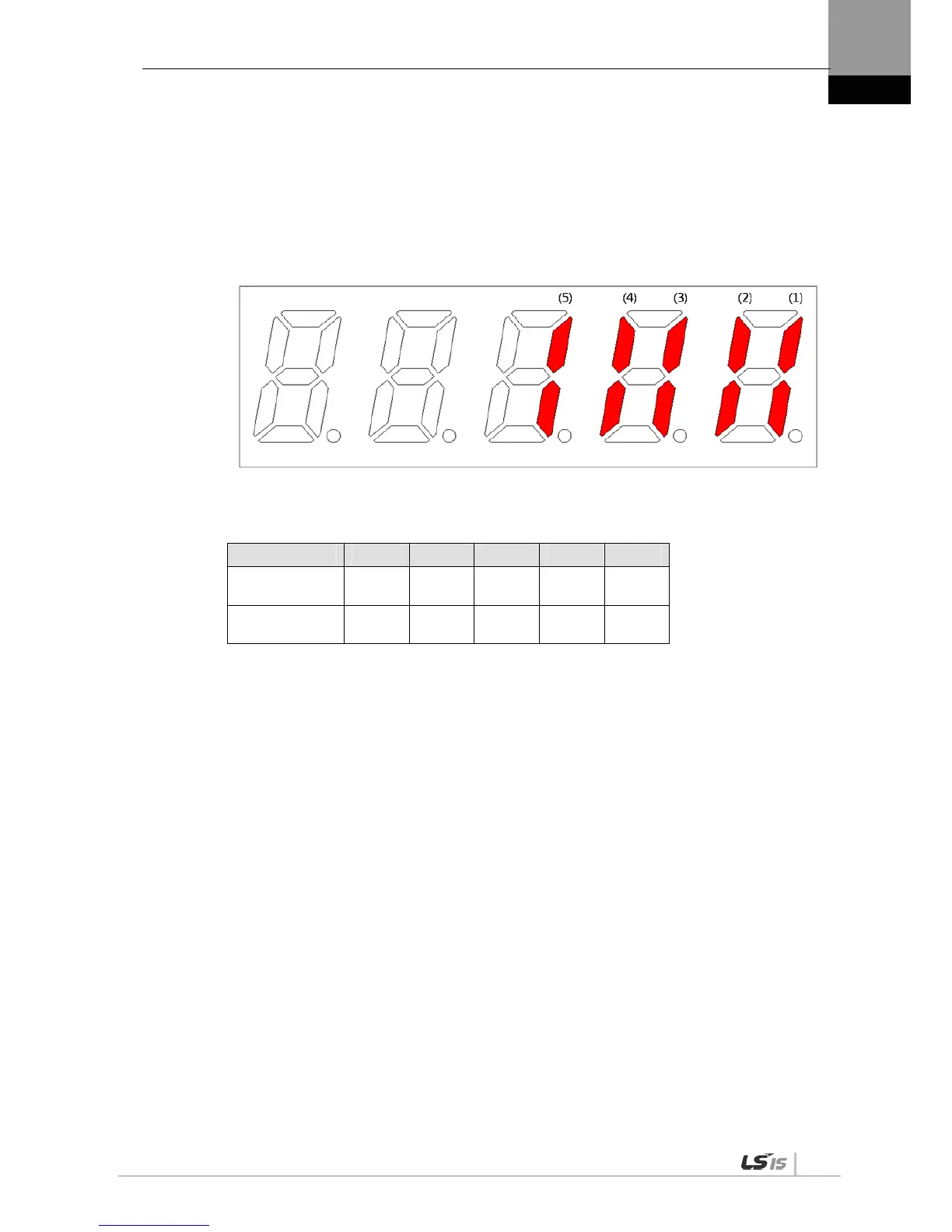

The positions of the seven segment LEDs and CN1 contact correspond as follows.
If an LED that corresponds to a contact is turned on/off, it indicates ON/OFF accordingly.
[Output Contact Setting]
Number (5) (4) (3) (2) (1)
CN1 - pin
number
45 44 43 40 /41 38 / 39
Allocated default
signal name
INPOS BRAKE ZSPD READY ALARM
Press [UP] on each digit and the (4) and (2) signals are turned on or off for forced output.
Press [Down] on each digit and the (5), (3) and (1) signals are turned on or off for forced
output.
Press [MODE] to move to another digit.
