4. Parameters
4-10
4.1.5 External Input Contact Signal Display [St-14]
You can check whether the ON/OFF status of digital input/output signals that access the
servo drive are on or off.
(1) External Input Signal Display

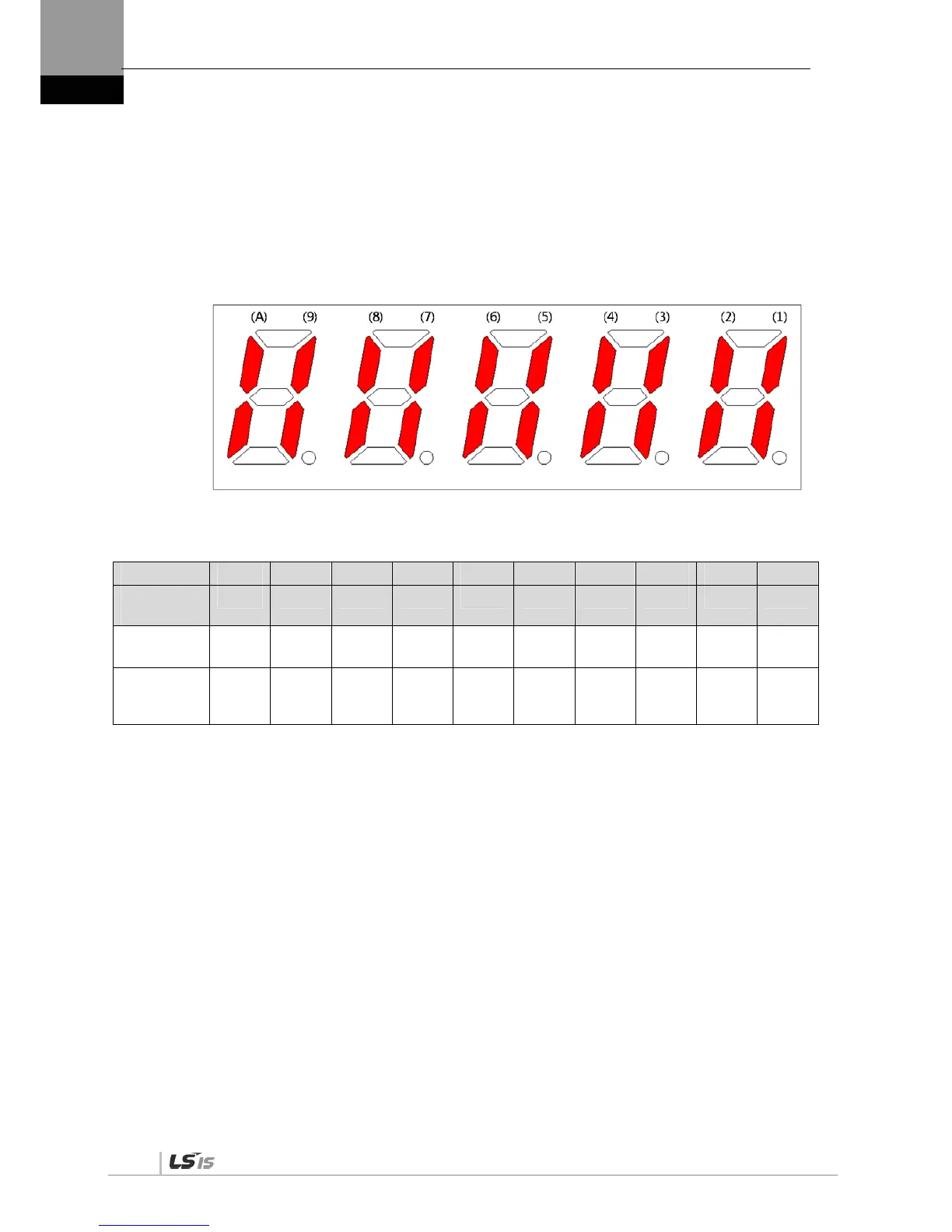

The positions of the seven segment LEDs and CN1 connector pins correspond as follows.
If an LED that corresponds to a pin is turned on/off, it indicates ON/OFF accordingly.
Input Contact Display
Number (A) (9) (8) (7) (6) (5) (4) (3) (2) (1)
Contact
Number
DIA DI9 DI8 DI7 DI6 DI5 DI4 DI3 DI2 DI1
CN1
Pin number
48 18 19 20 46 17 21 22 23 47
Allocated
default
Signal name
STOP EMG CWLIM
CCWLI
M
DIR
ALMR
ST
SPD3 SPD2 SPD1 SVON
