4.4.3 Analog Input/Output Parameter Setting
(1) Analog Speed Scale Setting
 Analog speed scale [P2-17]: Set the analog speed command of 10 [V] in the unit of [RPM]. The
maximum value is the maximum motor speed.
 Analog speed command offset [P2-18]: There are cases where a certain level of voltage remains on
the analog signal access circuit, even at the 0 speed command. In this case, you can compensate it
by setting the voltage as offset. The unit is [㎷].
 Zero speed command clamp setting
(2) Analog Torque Scale Setting
 Analog torque command scale [P2-20]: Set the analog torque command of 10 [V] as a percentage
of the rated torque. The setting should be within the torque limit [P1-13] and [P-14] of system
parameter setting.
 Torque command offset [P2-21]: There are cases in which a certain level of voltage remains on the
analog circuit, even at the 0 torque command, because of problems with the circuit. You can
compensate this by setting the voltage as offset. The unit is [㎷].

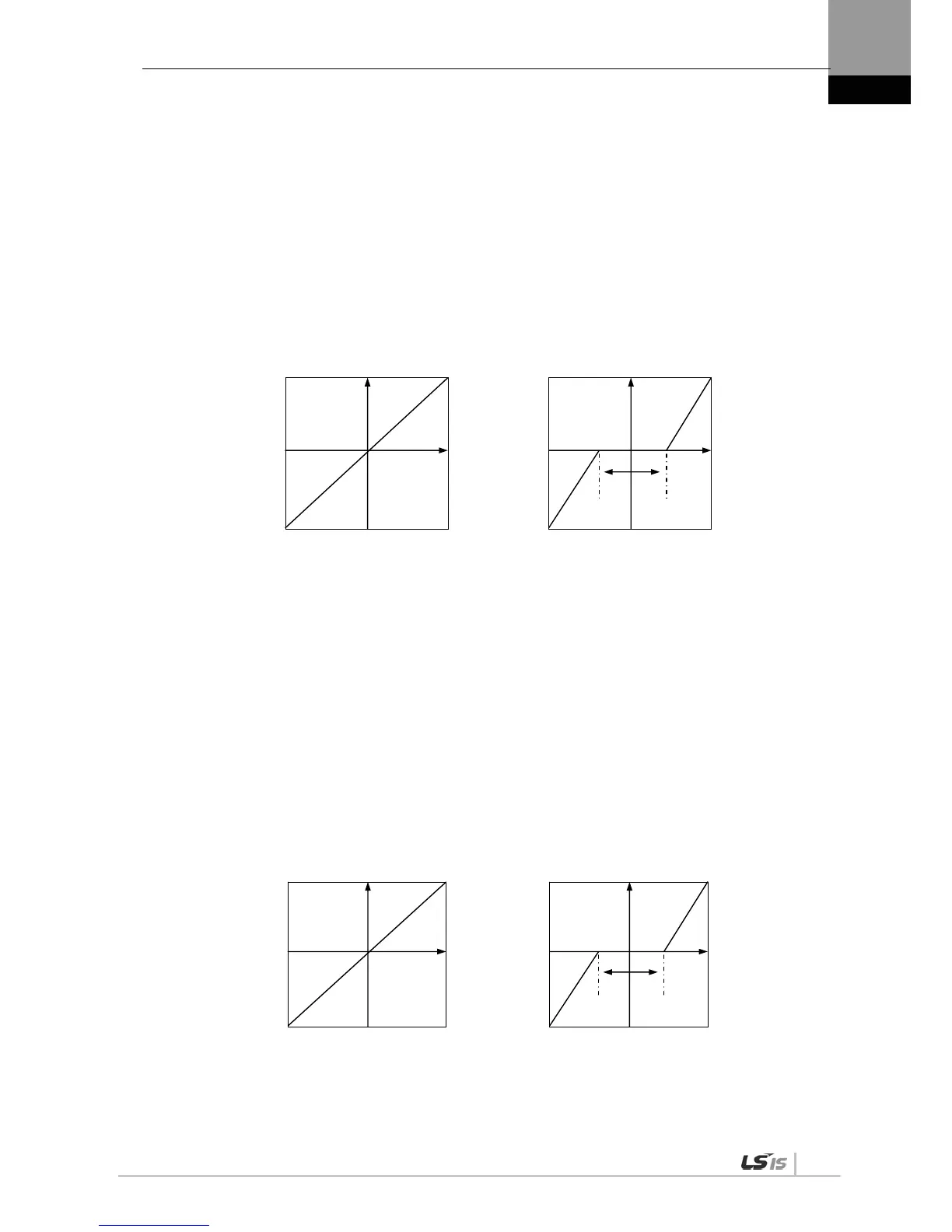

 Zero torque command clamp
-10 [V]
-10 [V]
+10 [V]
Voltage
-㎷
+10 [V]
Zero torque command
clamp voltage
[P2-22]
+㎷
Zero torque command clamp
voltage
[P2-22] = 0
Zero torque command clamp
voltage
[P2-22] = Not 0 [mV]
Torque
-10 [V]
-10 [V]
+10 [V]
Speed
Voltage
-㎷
+10 [V]
Zero speed command
clamp voltage
[P2-19]
+㎷
Zero speed command clamp
voltage”
[P2-19] = 0
Zero speed command clamp
voltage
[P2-19] = Not 0 [mV]
