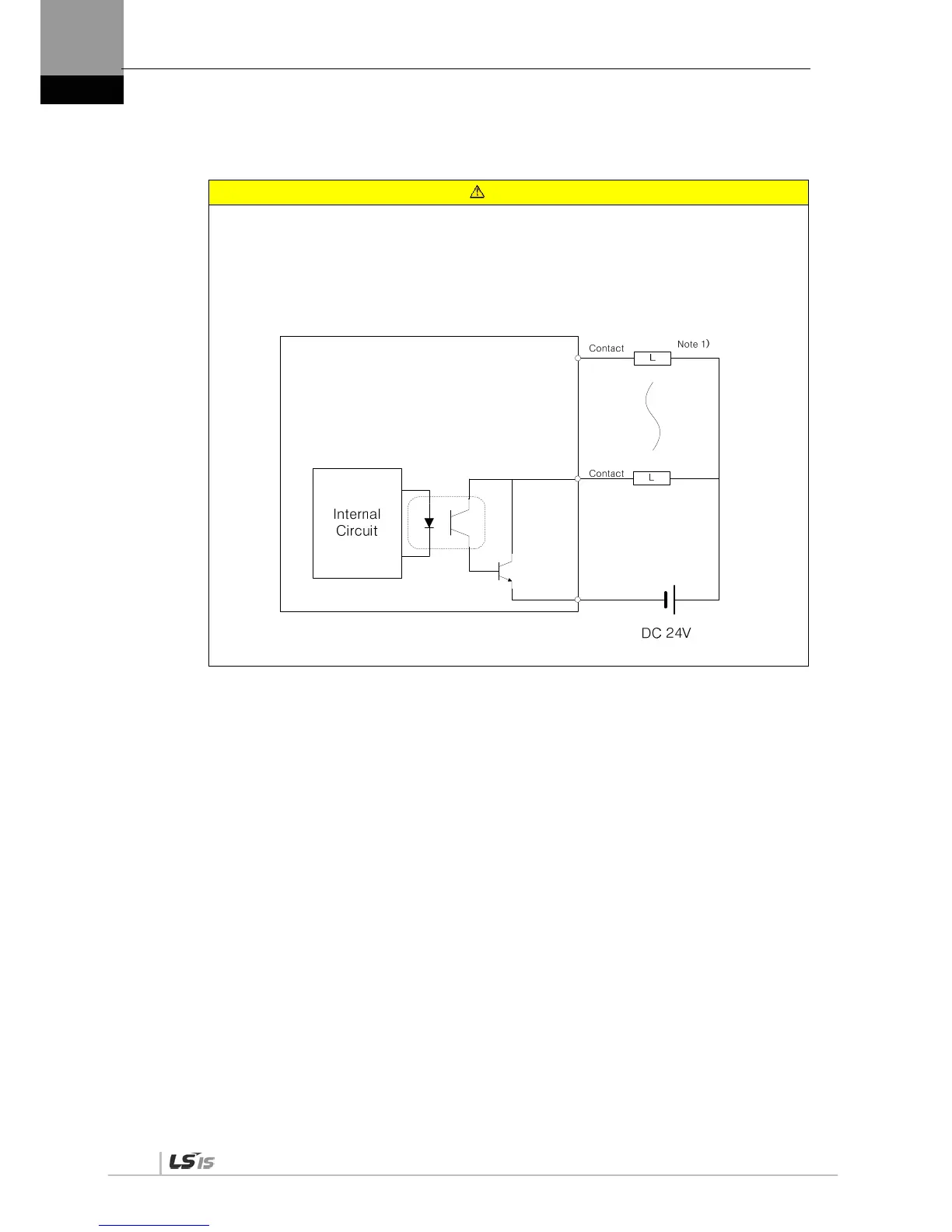

3.5.2 Contact Output Signal
Caution
1. There are two output contacts based on the characteristics of individual signals: contact A and
contact B. They can be set by [P2-10].
2. It is possible to turn each contact on or off forcibly with [Cn-08]. Take extra caution because
each contact is automatically turned off when power is off.
3. The signal definition of each contact point can be modified by [P2-05], [P2-06], and [P2-07].
4. Overvoltage and overcurrent may cause damage because a transistor switch is used internally.
Rated voltage and current: DC 24 [V] ±10%, 120 [㎃]
NOTE 1) For alarm and READY output signals, the GND24 terminal is separated.
