6 Communication Protocol
6.1 Overview and Communication
Specifications
6.1.1 Overview
The XDL-L7 servo drive uses RS-422 serial communication. By connecting it to a PC or an
upper level controller, you can test drive it or change gain tuning and parameters.
You can also operate or handle communication of up to 32 axes by connecting multiple XDL-
L7 servo drives via a multi-drop method.

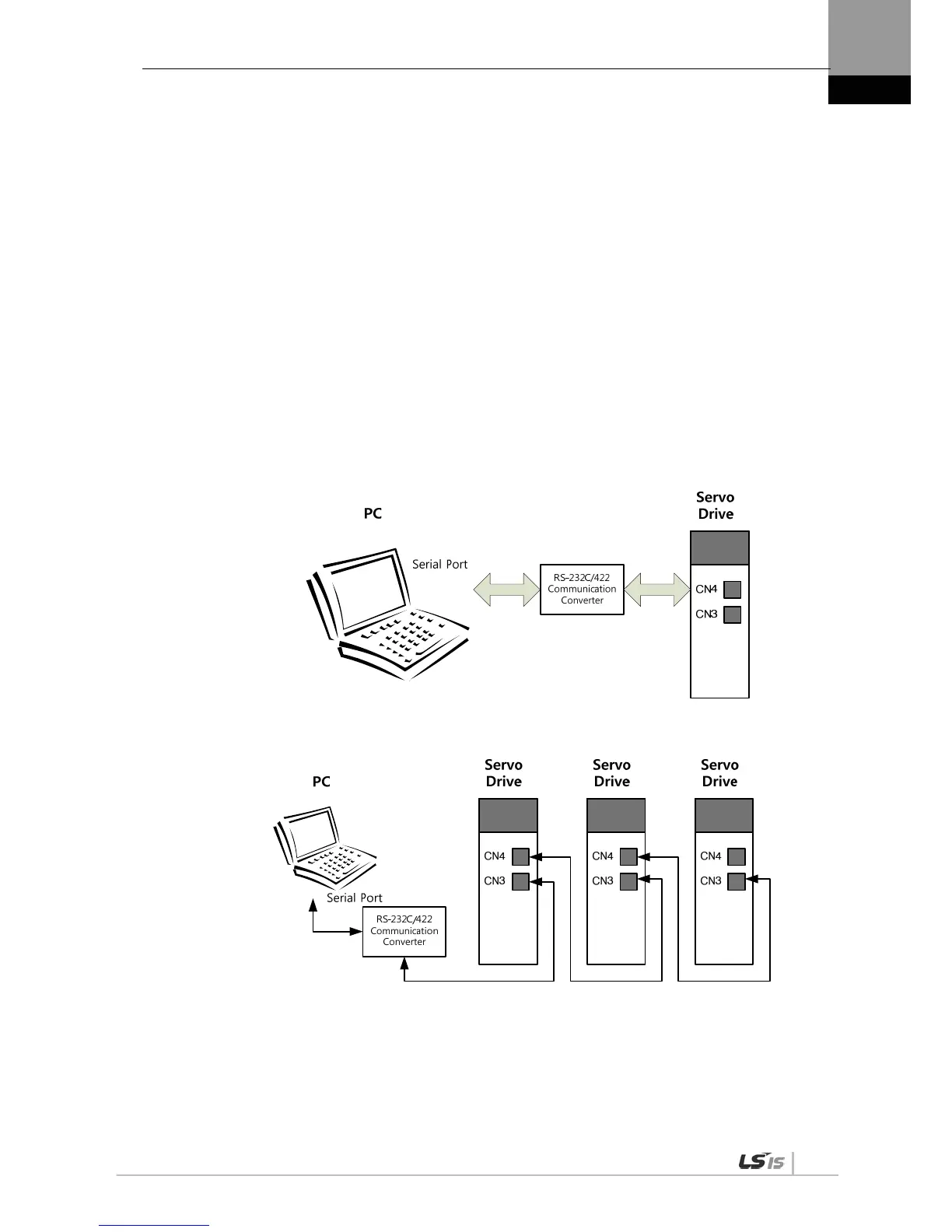

(1) Serial Communication Access through RS422
(2) Multi-Drop Access through RS422 (up to 32 machines)
NOTE 1) When using a PC as the upper level controller, you have to use the RS232/RS485 communication
converter.
The CN3 and the CN4 connector pins of the servo drive are connected on a one-to-one basis internally,
making multi-drop wiring easy.
