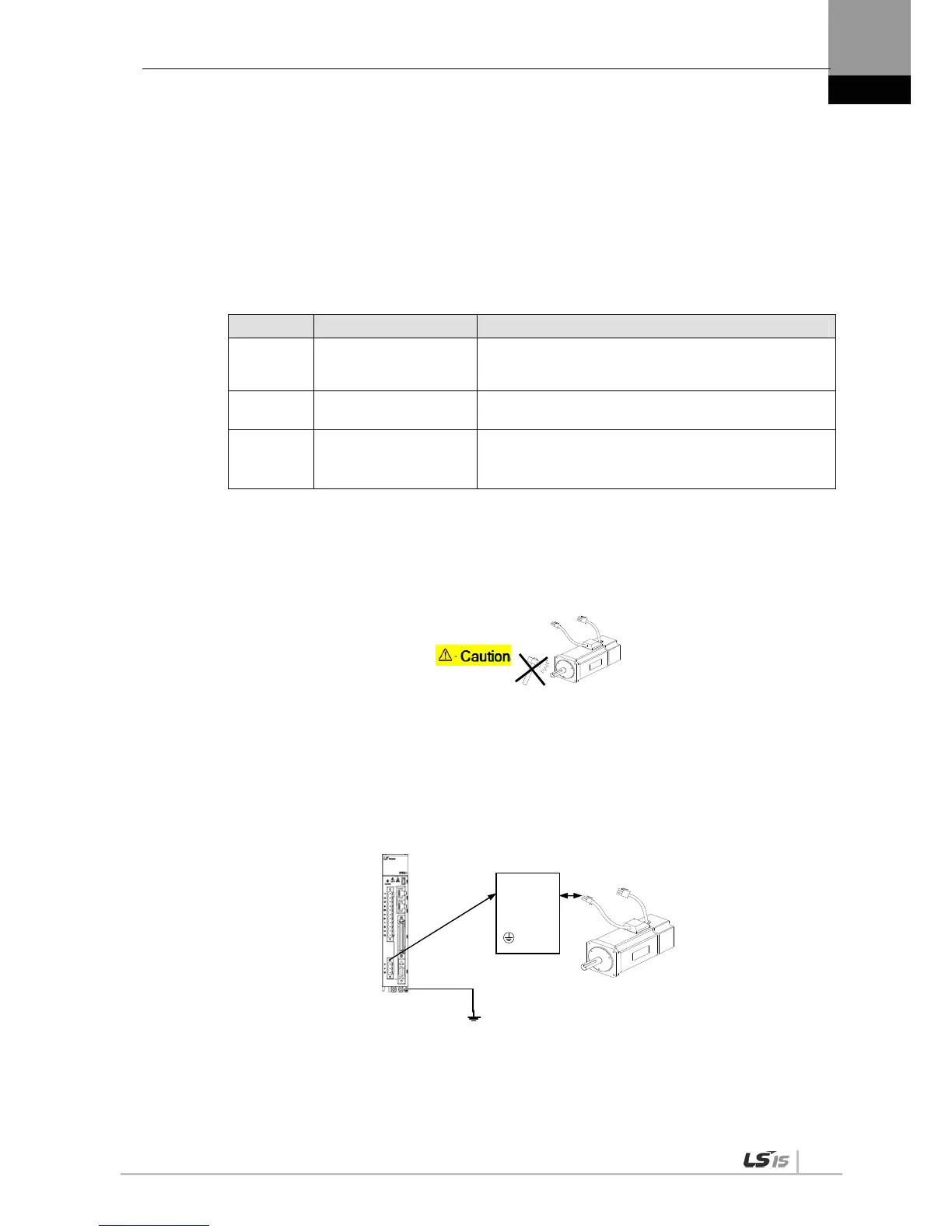

2. Installation
2-1
2 Installation
2.1 Servo Motor
2.1.1 Usage Environment
Item Requirements Notes
Ambient
temperature
0 ∼ 40[℃]
Consult with our technical support team to customize the
product if the temperature in the installation environment is
over the given temperature.
Ambient
humidity
80[%] RH or lower Use the product in steam-free places.
External
vibration
Vibration acceleration
19.6 [㎨] or below in the
X and Y directions
Excessive vibration reduces the lifespan of bearings.
2.1.2 Prevention of Excessive Impact
Excessive impact to the motor shaft during installation, or the motor falling during handling,
may damage the encoder.
2.1.3 Motor Connection
The motor might burn out when commercial power is directly connected to it.
Be sure to connect via the specified drive.
Connect the ground terminal of the motor to either of the two ground terminals inside the drive, and
the remaining terminal to the type-3 grounding.
Connect the U, V, and W terminals of the motor, just as the U, V, and W terminals of the drive.
Make sure that the pins on the motor connector are securely connected.
In case of moisture or condensation on the motor, make sure that insulation resistance is 10 [㏁]
(500 [V]) or higher before you start installation.
U – U
V - V
W – W
- F.G
