4.2 Parameter Description
4.2.1 Parameter System

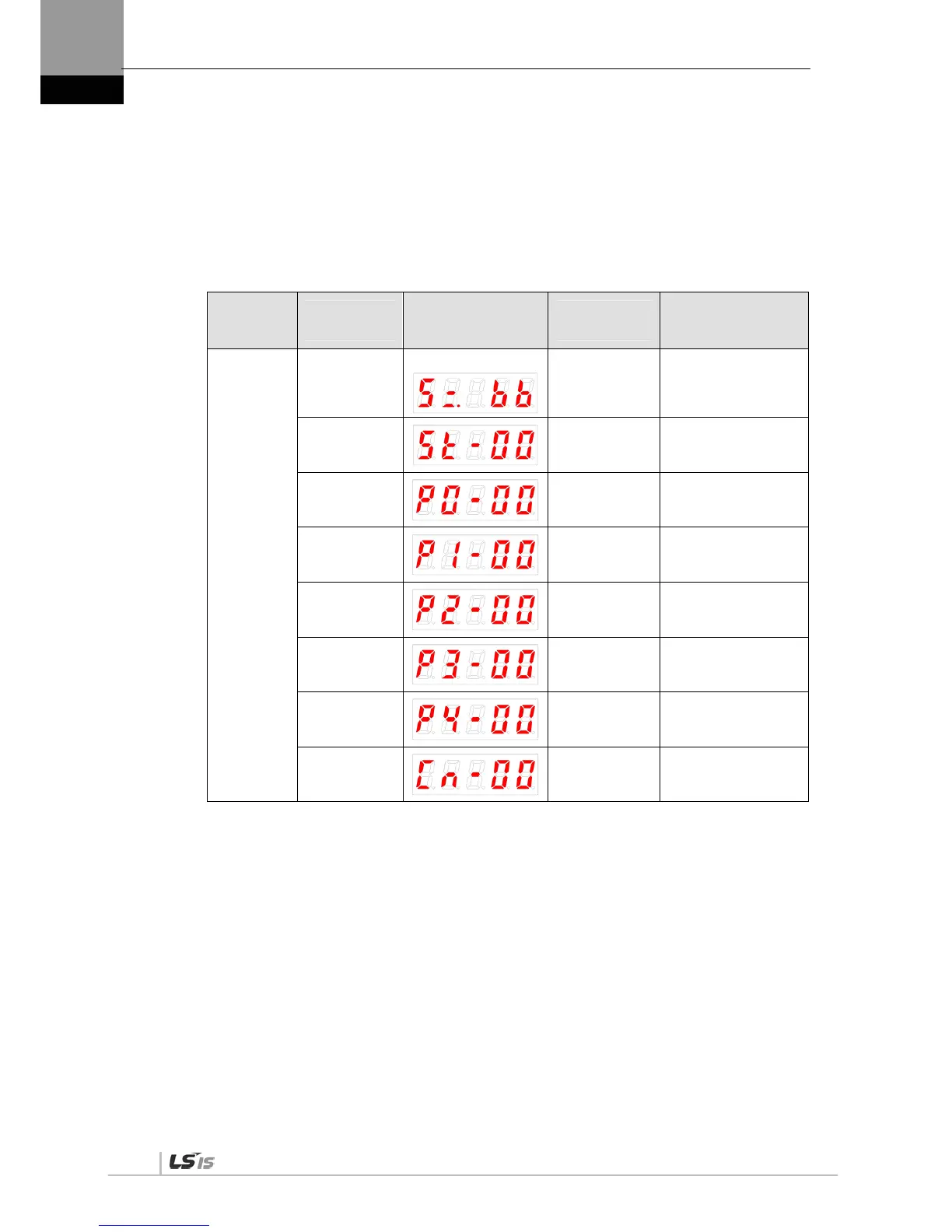

There are a total of eight groups of parameters. Each group is explained in the following
table:
Move to
Another
Parameter
Parameter
Number
Initial Screen
Parameter
Group Name
Details
MODE Key
-
E.g.) In speed mode
Status Summary
Display
Displays the status
summary of the servo.
St-00 - St-26 Status
Displays the operation
status of the servo.
P0-00 - P0-27 System
Saves system
configuration
information.
P1-00 - P1-29 Control
Save control-related
parameters.
P2-00 - P2-22 IN / OUT
Saves parameters
related to analog and
digital input/output.
P3-00 - P3-20
Speed
Operation
Saves speed
operation parameters.
P4-00 - P4-14
Position
Operation
Saves position pulse
operation parameters.
Cn-00 - Cn-18 Command
Performs operation
handling.
The following explains the acronyms related to application mode in the parameter.
P: Use in position control mode.
S: Use in speed control mode.
T: Use in torque control mode.
Press [MODE] once to move to the next display mode.
