(2) Example of Output Contact Forced ON/OFF
(BRAKE OFF)

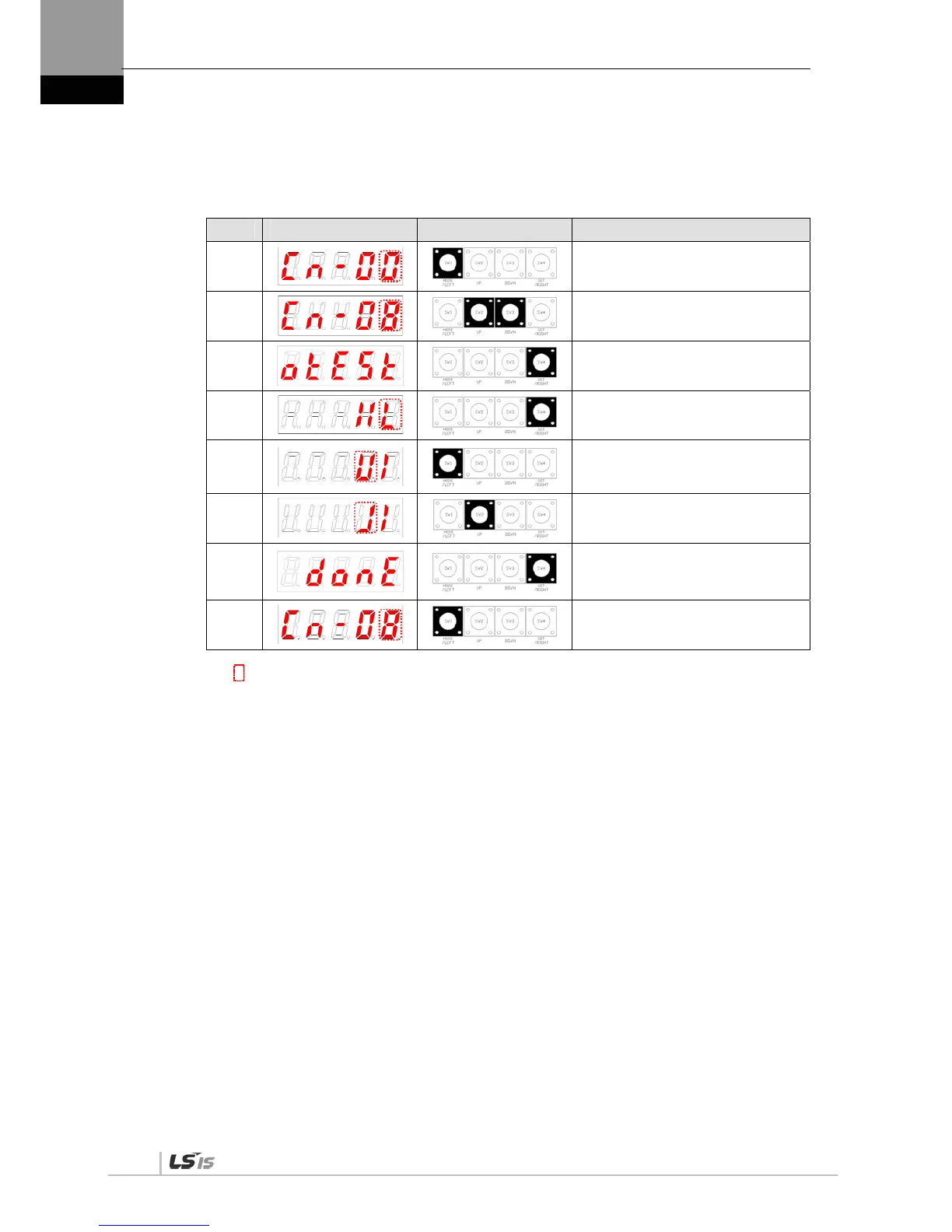

[Example of handling output contact forced ON/OFF]
Order Loader Displays Keys to Use What to Do
1
Press [MODE] to move to [Cn-00].
2
Press [UP] or [DOWN] to move to
[Cn-08].
3
Press [SET] to enter input forced
ON/OFF setting.
4
Press [SET] to enter forced output bit
setting.
5
Press [MODE] at the blinking cursor
to move to the desired digit, DIGIT 2,
and it rotates.
6
Press [UP] to turn off the brake
signal.
7
Press [SET] to end input forced
ON/OFF mode.
[done] is displayed.
8
Press [MODE] for a second to return
to [Cn-08].
※ “ ” indicates flickering.
