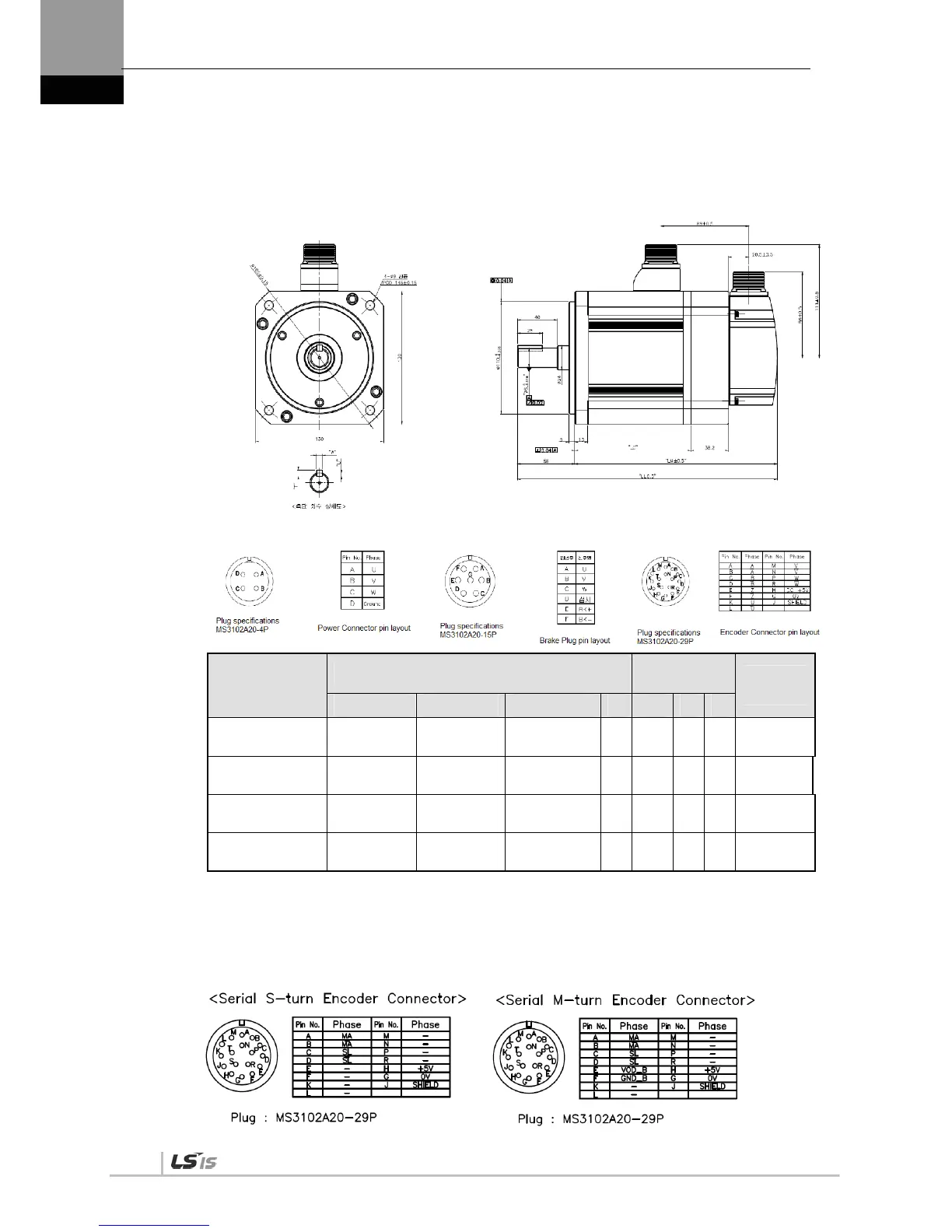

 SE Series | XML-SE09A, SE06D, SE05G, SE03M, XML-SE15A,
SE11D,SE09G,SE06M, XML-SE22A, SE16D, SE13G, SE09M,
XML-SE30A, SE22D, SE17G, SE12M
Name
External Dimensions
Key
Dimensions
Weight
(kg)
L LM LC S T W U
SE09A, SE06D,
SE05G, SE03M
201.3(239.3) 143.3(181.3) 93.8(93.6) 19 5 5 3 5.5(7.04)
SE15A, SE11D,
SE09G, SE06M
225.3(263.3) 167.3(205.3) 117.8(117.6) 19 5 5 3 7.54(9.08)
SE22A, SE16D,
SE13G, SE09M
249.3(287.3) 191.3(229.3) 141.8(141.6) 22 6 6
3.
5
9.68(11.22
)
SE30A, SE22D,
SE17G, SE12M
273.3(311.3) 215.3(253.3) 165.8(165.6) 22 6 6
3.
5
11.78(13.3
2)
NOTE 1) Use DC 24 [V] for brake-opening power
NOTE 2) . The sizes in parentheses apply when attached to brakes
NOTE 3) . Option specification; Serial M-turn Encoder PinMap
