7. Product Specifications
7-37

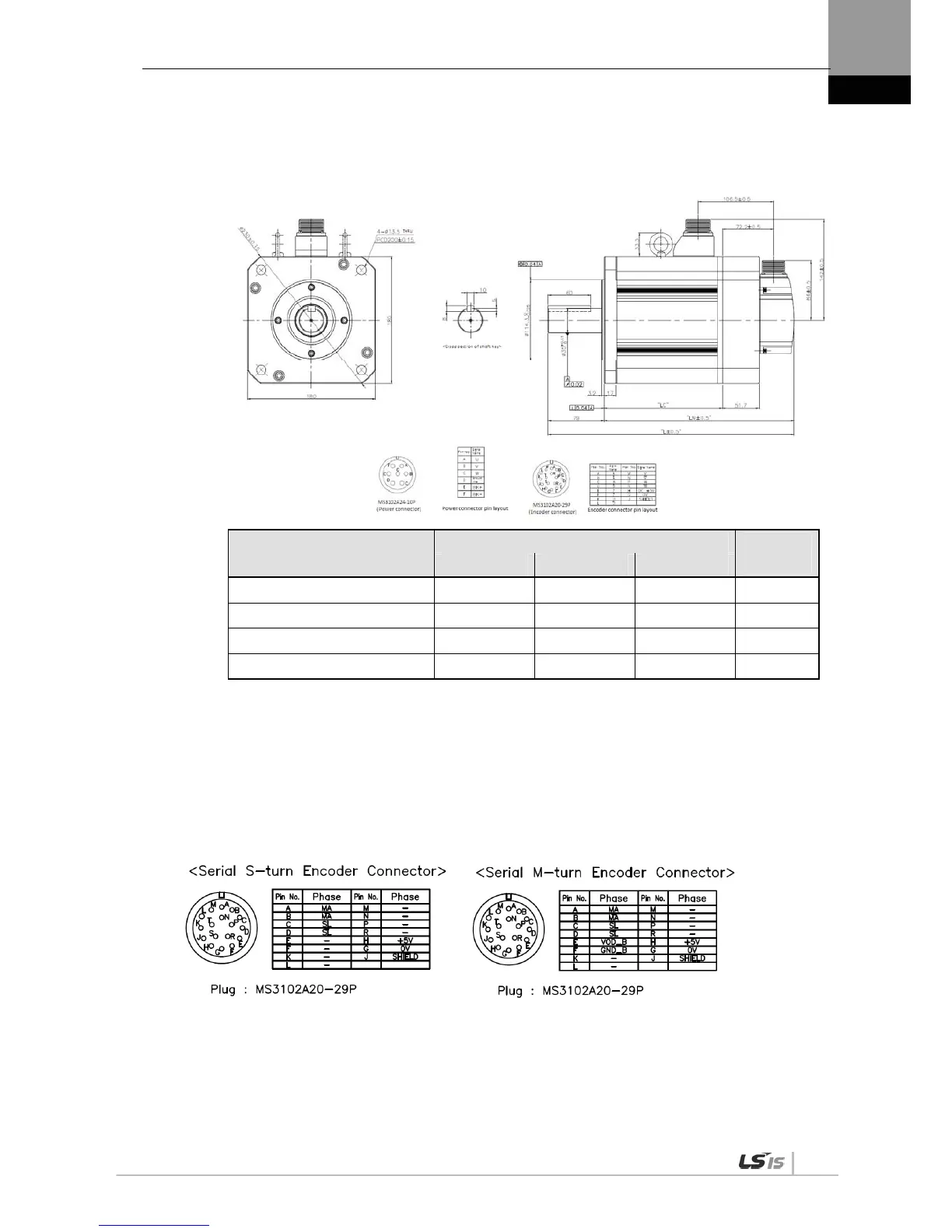

 SF Series | XML-SF30A, SF22D, SF20G, SF12M, SF50A, LF35D,
LF30G, SF20M, SF30M, LF30M,SF44G, SF44M
Name
External Dimensions
Weight
(Kg)
L LM LC
SF30A, SF22D, SF20G, SF12M 261.5(312.9) 182.5(233.9) 133(132.7) 12.4(19.2)
SF50A, LF35D, LF30G, SF20M 295.5(346.9) 216.5(267.9) 167(166.7) 17.7(24.9)
SF55D, SF44G LF30M 345.5(396.9) 266.5(317.9) 217(216.7) 26.3(33.4)
SF44M 405.5(456.9) 326.5(377.9) 277(276.7) 35.6(42.8)
NOTE 1) Eye bolts apply to LF30M or higher models
NOTE 2) Use DC 24 [V] for brake-opening power.
NOTE 3) The sizes in parentheses apply when attached to brakes.
NOTE 4) . Option specification; Serial M-turn Encoder PinMap
