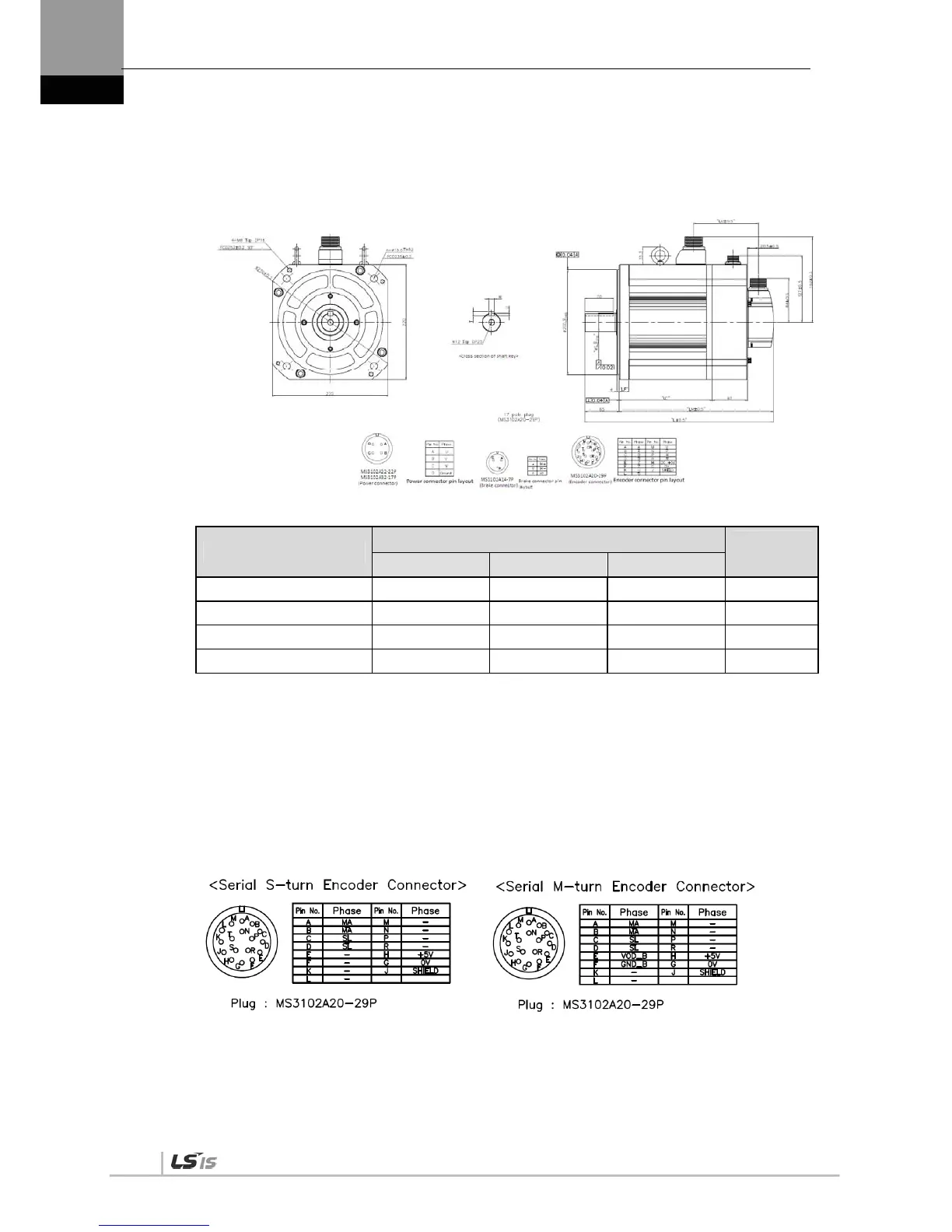

7. Product Specifications
7-38
SG Series | XML-SG22D, SG20G, SG12M,
XML-LG35D, LG30G, SG20M,
XML-SG55D, SG44G, LG30M, XML-SG44M
Name
External Dimensions
Weight
(Kg)
L LM LC
SG22D, SG20G,SG12M 236.5(302.7) 171.5(237.7) 122(121.2) 16.95(30.76)
LG35D,LG30G,SG20M 256.5(322.7) 191.5(257.7) 142(142.2) 21.95(35.7)
SG55D, SG44G,LG30M 292.5(358.7) 227.5(293.7) 178(177.2) 30.8(44.94)
SG44M 320.5(386.7) 255.5(321.7) 206(205.2) 37.52(50.94)
NOTE 1) Use DC 90 [V] for brake-opening power.
NOTE 2) The sizes in parentheses apply when attached to brakes.
NOTE 3) . Option specification; Serial M-turn Encoder PinMap
