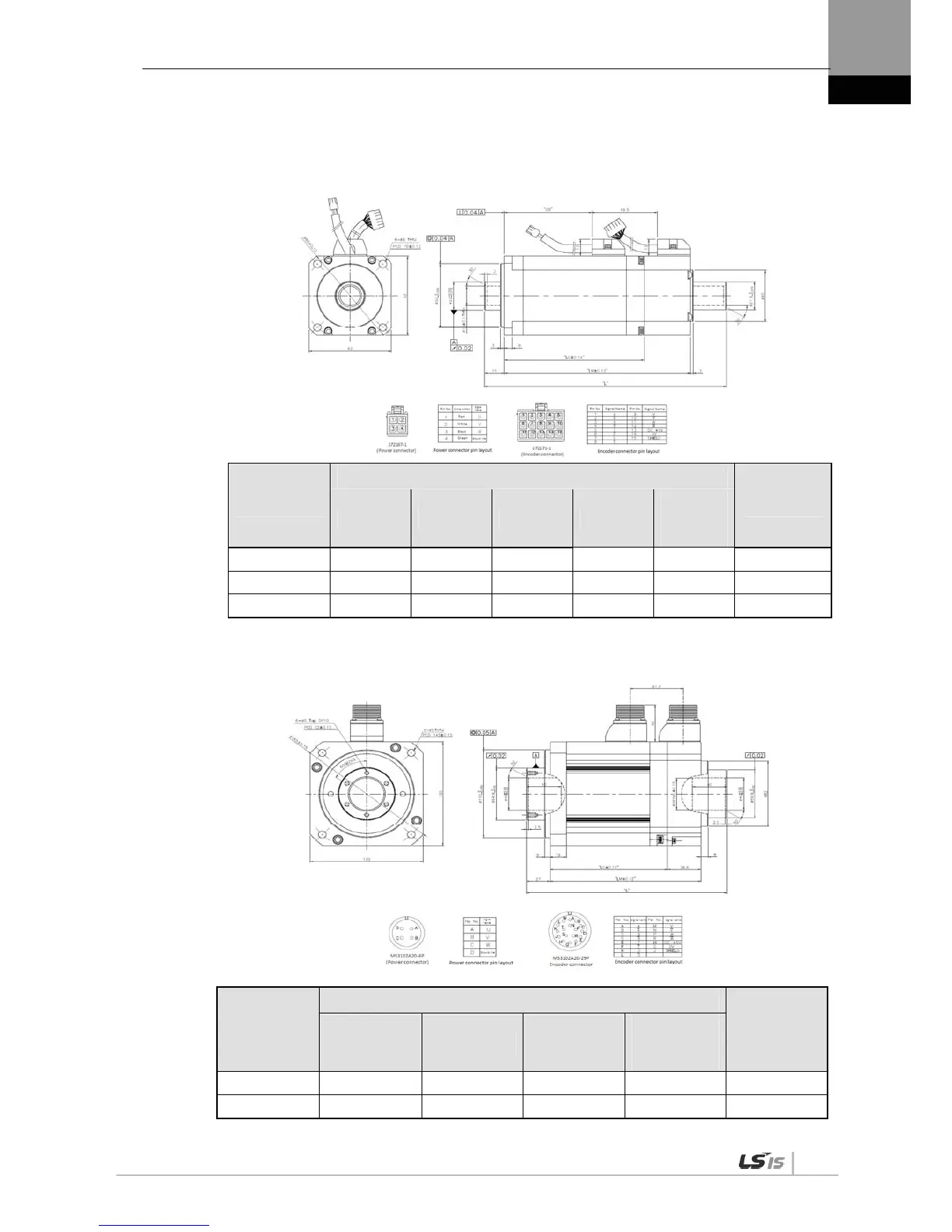

 XML-HB01A (Hollow Shaft), XML-HB02A (Hollow Shaft),
XML-HB04A (Hollow Shaft)
Name
External Dimensions
Weight (Kg)
L LM LC CB
Hollow
Shaft
Diameter
HB01A 140.5 98.5 68.5 24 15 0.89
HB02A 154.5 112.5 82.5 38 15 1.16
HB04A 182.5 140.5 105.5 66 15 1.69
 XML-HE09A (Hollow Shaft), XML-HE15A (Hollow Shaft)
Name
External Dimensions
Weight (Kg)
L LM LC
Hollow
Shaft
Diameter
HE09A 207 150 111.5 40 5.82
HE15A 231 174 135.5 40 7.43
