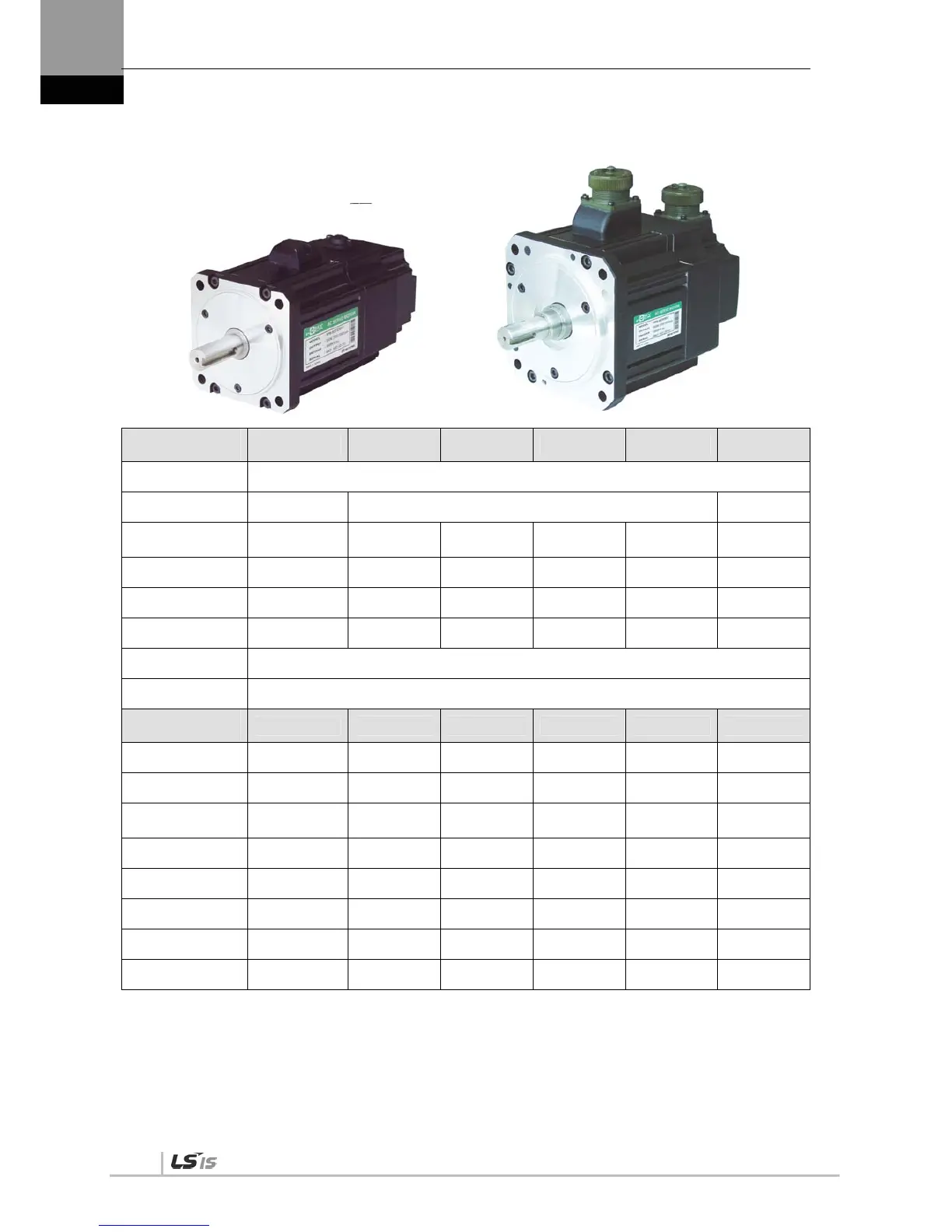

7. Product Specifications
7-32
■ Electric Brake Specifications
Applicable Motor
Series
XML-SA XML-SB XML-SC XML-SE XML-SF XML-SG
Purpose Maintenance
Input voltage [V] DC 24V DC 24V DC 90V
Static friction torque
[N•m]
0.32 1.47 3.23 10.4 40 74
Capacity [W] 6 6.5 9 19.4 25 32
Coil resistance [] 96 89 64 29.6 23 327
Rated current [A] 0.25 0.27 0.38 0.81 1.04 0.28
Braking mechanism Spring brake
Insulation grade GraDde F
Applicable Motor
Series
XML-FB XML-FC
Purpose Maintenance Maintenance
Input voltage [V] DC 24V DC 24V
Static friction torque
[N•m]
1.47 3.23
Capacity [W] 6.5 9
Coil resistance [] 89 64
Rated current [A] 0.27 0.38
Braking mechanism Spring brake Spring brake
Insulation grade Grade F Grade F
NOTE 1) The same specifications apply to all electric brakes installed in our servo motors.
NOTE 2) Electric brakes are designed to maintain a stop. Never use them for absolute braking.
NOTE 3) The characteristics of the electric brakes were measured at 20°C.
NOTE 4) These brake specifications are subject to change. Check the voltage specifications on your
specific motor.
